LP9-41231F21

OTTLP9_41231F21
Heilind Number:OTTLP9-41231F21
Manufacturer:OTTO Controls
Manufacturer Number:LP9-41231F21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

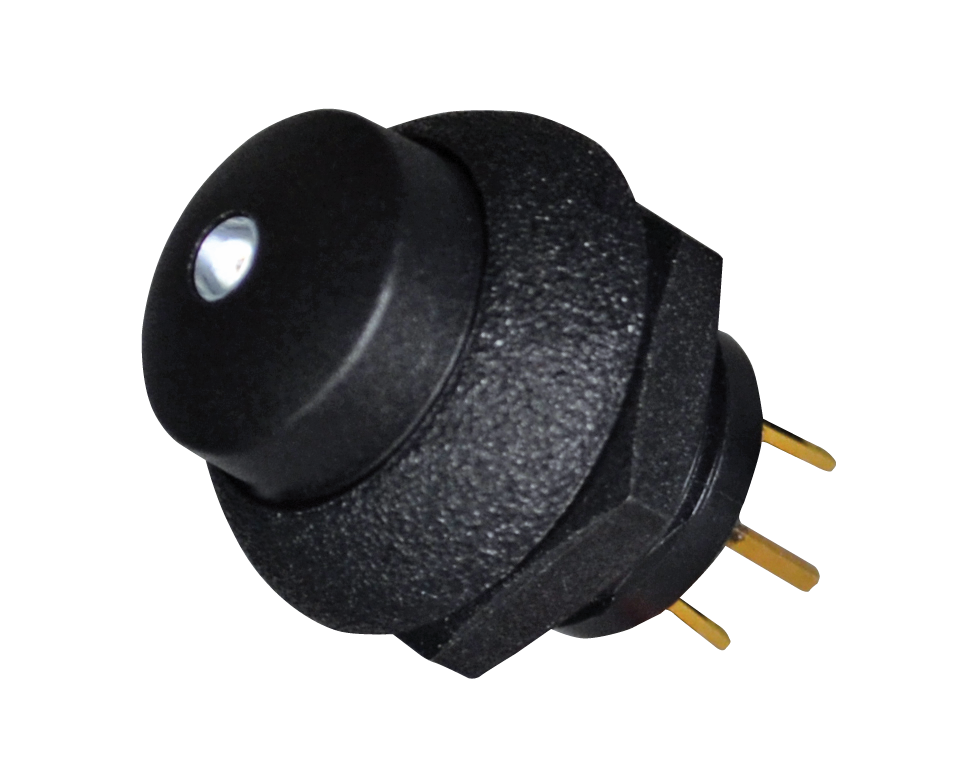

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-41231F21
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome Lightpipe Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:PC Pin
Actuator Shape:Round
Cap Color:Red
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-41231F21

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch, SKU LP9-41231F21. Featuring a vibrant red cap and durable black casing, this switch is designed for reliability in demanding environments with its IP6K8S sealing. The raised dome actuator, made of Thermoplastic, provides tactile feedback and precise control. With a 5A current rating and gold-plated brass contacts, it ensures efficient electrical performance. The SPDT configuration and On-(On) switch function offer versatility in circuit control. Illuminated with a red light at 12V, this switch enhances visibility. Ideal for panel mounting with PC pins, it's suitable for a wide range of applications. With a high durability rating of 25,000 cycles and operating temperatures from -55°C to 85°C, the LP9 is a reliable choice for industrial settings.
