LP9-51111A2A

OTTLP9_51111A2A
Heilind Number:OTTLP9-51111A2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-51111A2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

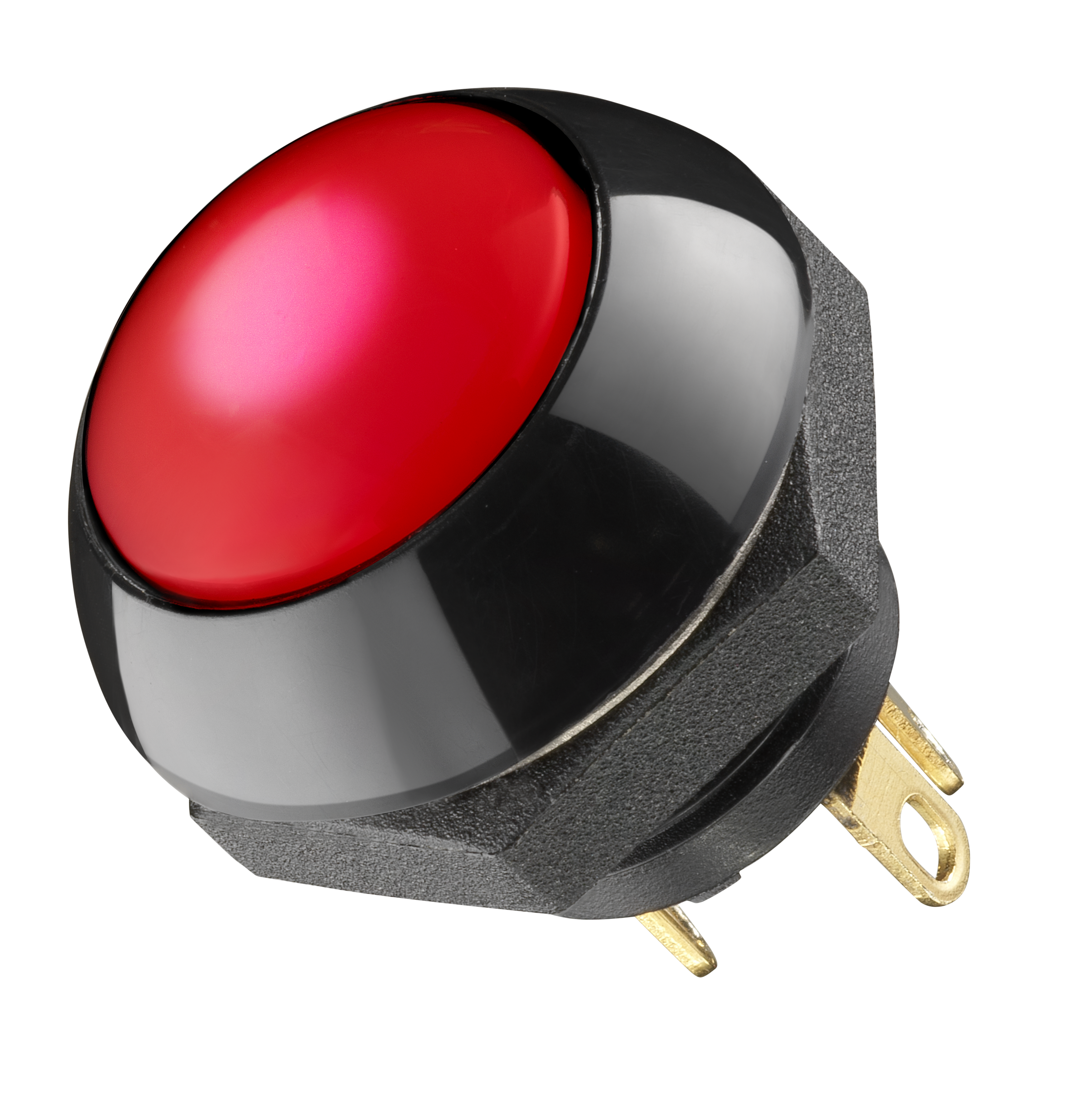

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-51111A2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP9-51111A2A

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, a high-performance component designed for seamless panel mounting applications. Featuring a durable thermoplastic housing in sleek black, this switch boasts an IP6K8S rating for superior protection against dust and water ingress. The flush dome button, made of thermoplastic, offers a responsive actuation experience with a 25,000-cycle durability rating. Emitting a vivid red light, the switch is easily visible even in low-light conditions. With a current rating of 5A, gold-plated brass contacts, and a contact configuration of SPST-NO, it ensures reliable performance. Operating at temperatures ranging from -55°C to 85°C, and compatible with both AC (115V) and DC (28V) systems, this switch is versatile and dependable. Suitable for various industries, including automotive, aerospace, and industrial, the LP9 Series is the ideal choice for applications requiring a sealed, illuminated pushbutton switch.
