LP9-51111C2A

OTTLP9_51111C2A
Heilind Number:OTTLP9-51111C2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-51111C2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

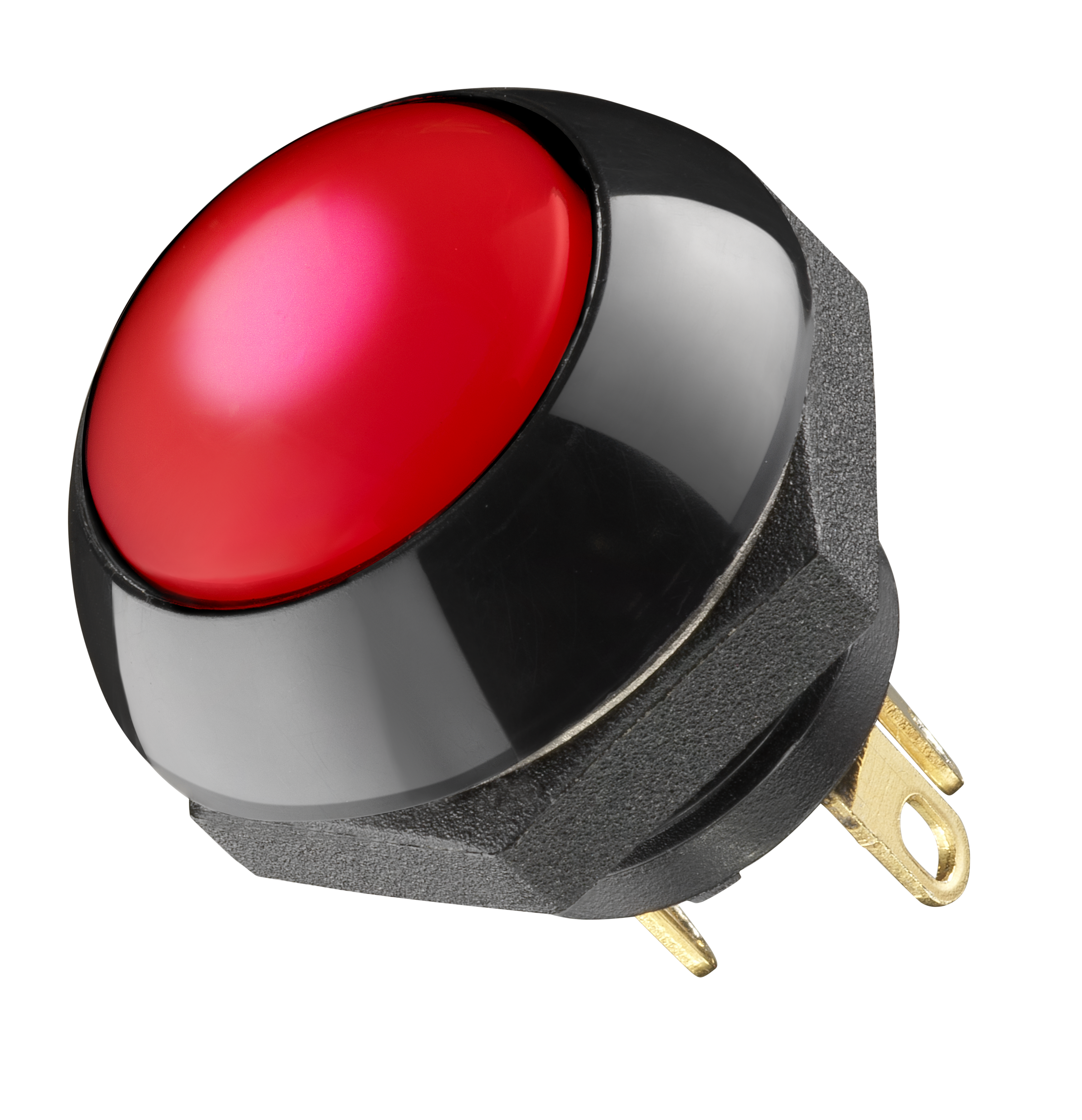

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-51111C2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP9-51111C2A

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch, LP9-51111C2A, offers durable and reliable performance in various applications. Featuring a White-Translucent cap and Amber illumination, this switch ensures easy visibility. With an IP6K8S sealing rating, it is well-suited for harsh environments. The Button (Flush Dome) actuator, made of Thermoplastic, provides a comfortable and responsive touch. Operating at 115 VAC and 28 VDC, with a 5A current rating, this switch is suitable for a wide range of voltage applications. The SPST-NO contact configuration and Gold-plated Brass contacts guarantee efficient conductivity. Designed for panel mounting with solder termination, it offers easy installation. With a durability rating of 25,000 cycles and an operating temperature range of -55°C to 85°C, this switch is a reliable choice for demanding industrial and commercial settings.
