LP9-51111G2A

OTTLP9_51111G2A
Heilind Number:OTTLP9-51111G2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-51111G2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

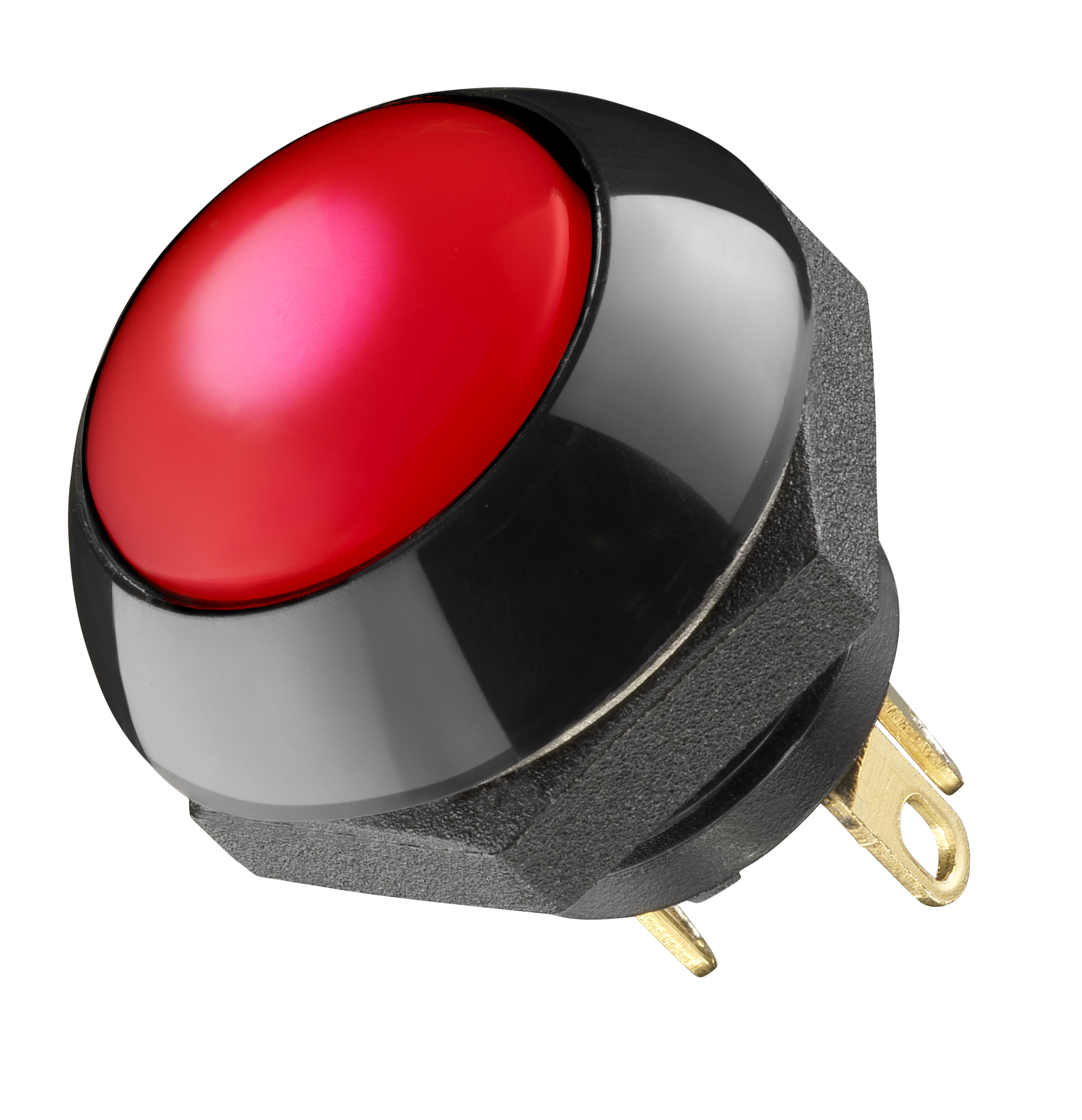

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-51111G2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP9-51111G2A

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch ( LP9-51111G2A) designed for reliable performance in demanding environments. Featuring a sleek black case with a white translucent cap, this switch offers a modern aesthetic. With an IP6K8S rating, it ensures protection against dust and water ingress. The flush dome button, made of durable thermoplastic, provides a comfortable actuation experience. Gold-plated brass contacts guarantee efficient conductivity, while the SPST-NO configuration allows for seamless operation. Illuminated by a vibrant green LED at 12V, this switch is perfect for applications requiring visual feedback. Suitable for panel mounting with solder termination, it offers easy installation. With a high durability rating of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, the LP9 series is a dependable choice for various industrial and automotive applications.
