LP9-51111K2A

OTTLP9_51111K2A
Heilind Number:OTTLP9-51111K2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-51111K2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

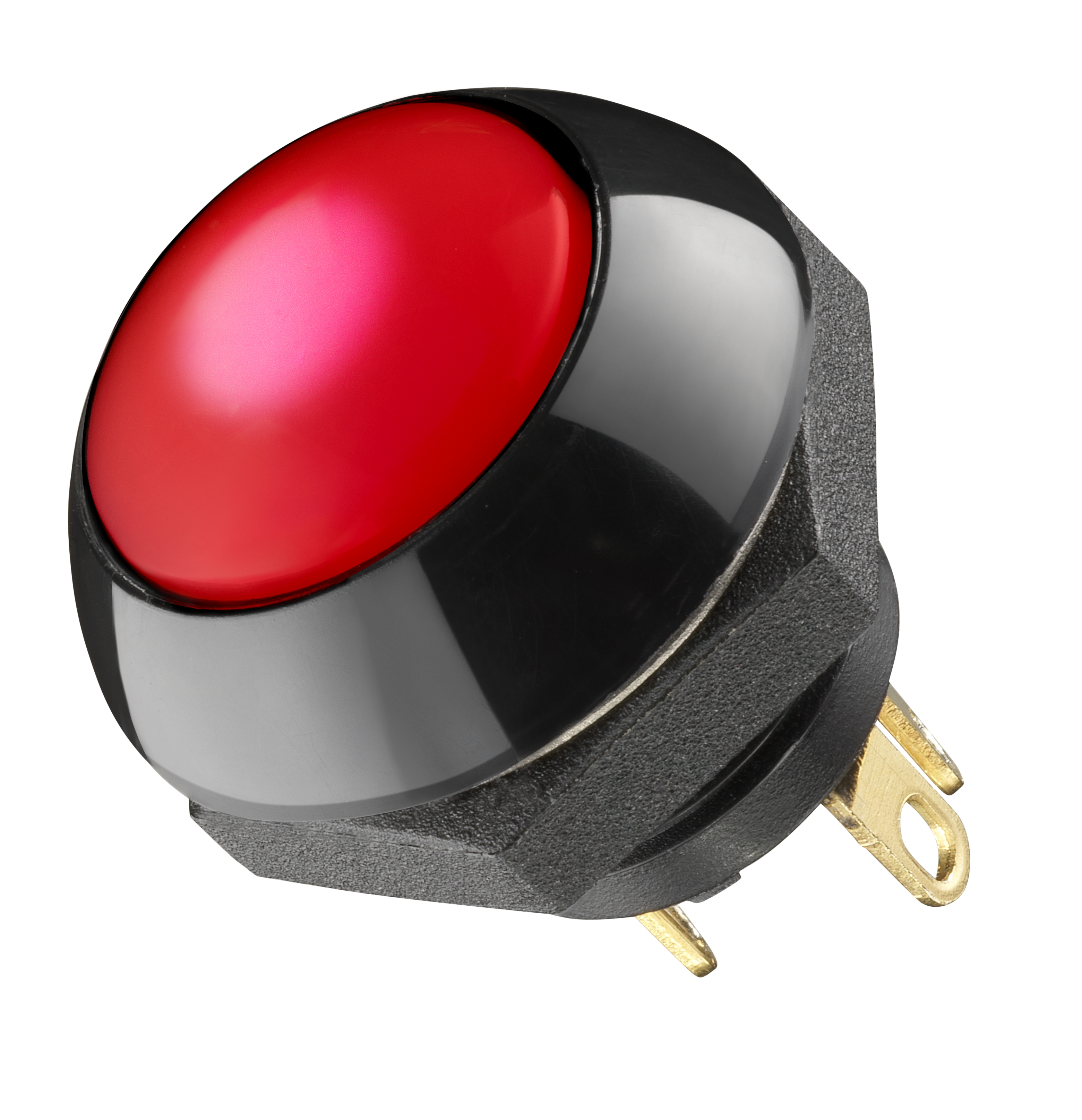

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-51111K2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP9-51111K2A

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, SKU LP9-51111K2A, designed for reliable performance in demanding environments. Featuring a sleek black case with a translucent white cap, this panel-mount switch is IP6K8S rated for dust and water resistance. The flush dome button, made of durable thermoplastic, offers a comfortable actuation with a gold-plated brass contact for optimal conductivity. Operating at 115VAC or 28VDC, with a 5A current rating, it is suitable for a wide range of applications. The white LED illumination, powered by 12V, enhances visibility in low-light conditions. With a SPST-NO contact configuration and a switch function of Off-(On), this sealed pushbutton switch ensures dependable operation with a durability rating of 25,000 cycles. From industrial machinery to automotive controls, this high-performance switch is the ideal choice for your critical switching needs.
