LP9-52211A2A

OTTLP9_52211A2A
Heilind Number:OTTLP9-52211A2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-52211A2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

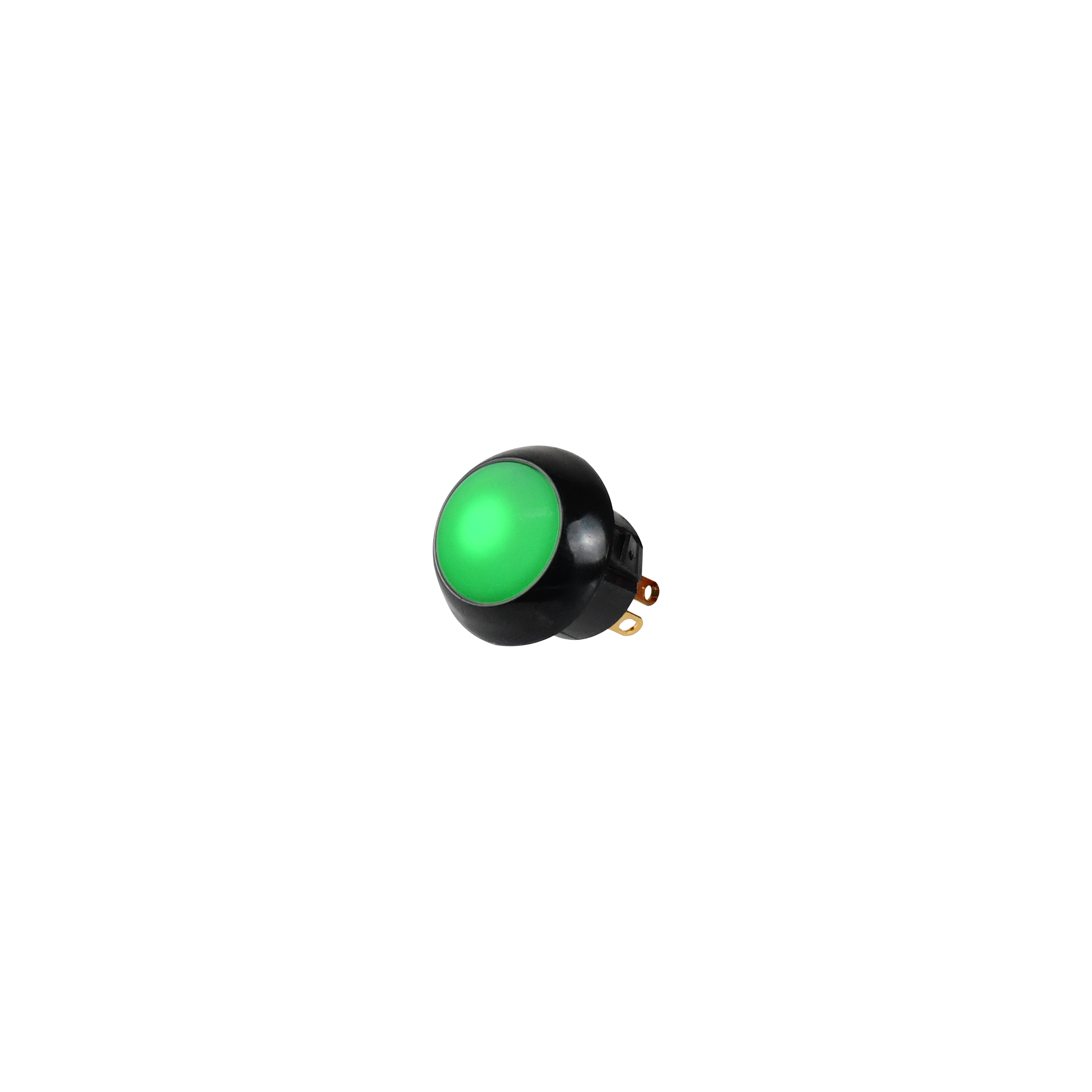

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-52211A2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.27 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP9-52211A2A

Detailed Description

The LP9 Series Illuminated Dome Pushbutton Switch, SKU LP9-52211A2A, offers reliable performance in demanding environments. Featuring a flush dome button actuator with a round shape, this switch is designed for panel mounting with a durable thermoplastic housing in black. The white-translucent cap and red illumination provide clear visual indication, while the gold-plated brass contacts ensure high conductivity. With an IP6K8S sealing rating, it is suitable for use in harsh conditions. The SPST-NO contact configuration, 5A current rating, and 115VAC/28VDC voltage ratings make it versatile for various applications. Operating from -55°C to 85°C with a durability rating of 25,000 cycles, this switch guarantees long-lasting performance. Ideal for use in automotive, industrial, and marine applications, the LP9 Series switch is a reliable choice for your control panel needs.
