LP9-61111B2A

OTTLP9_61111B2A
Heilind Number:OTTLP9-61111B2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61111B2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

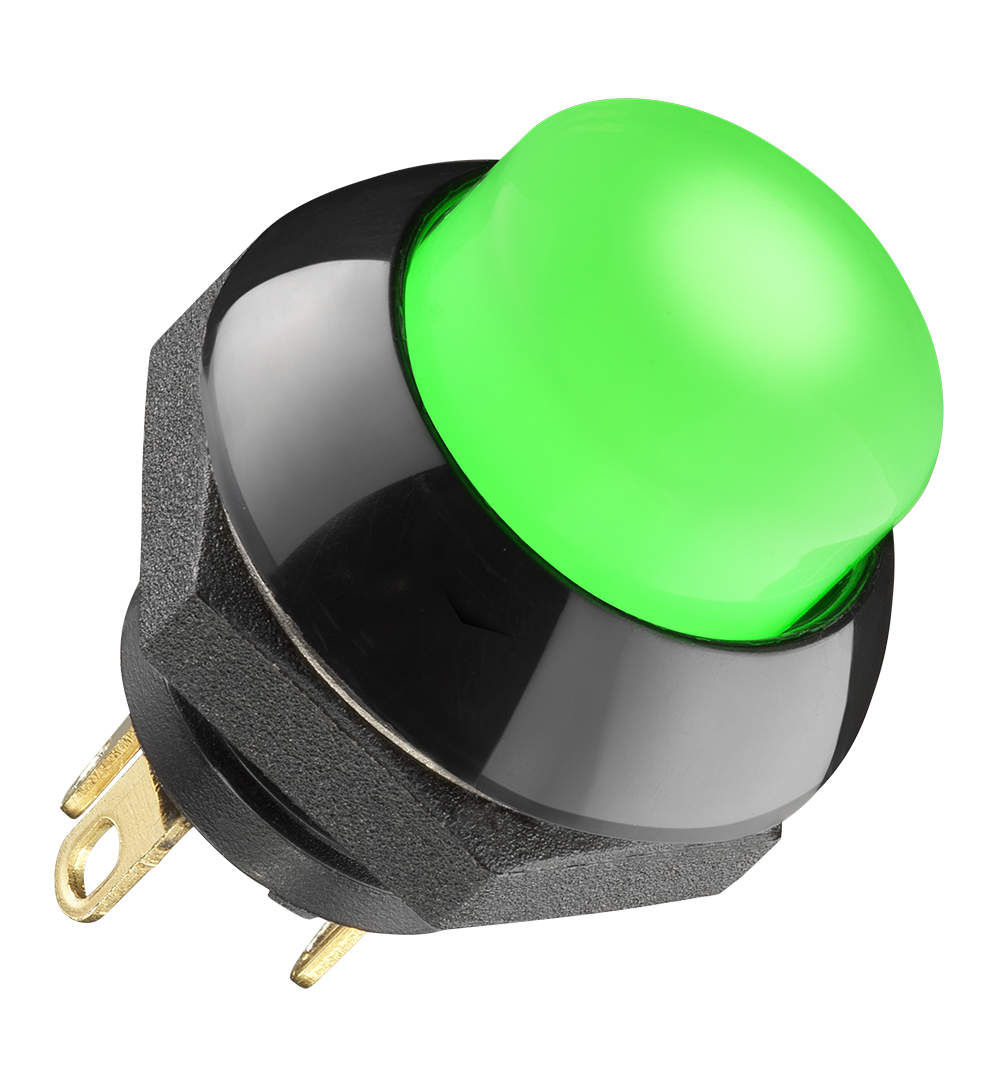

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61111B2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP9-61111B2A

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, LP9-61111B2A. This high-performance switch features a durable construction with a black thermoplastic case and white translucent cap, perfect for panel mounting applications. With an IP6K8S sealing rating and a gold-plated brass contact material, it ensures reliable operation in various environments. The raised dome button actuator, with a round shape and green LED illumination, offers tactile feedback and visibility. Operating at 115VAC or 28VDC, with a 5A current rating, it's suitable for a wide range of electrical systems. The SPST-NO configuration guarantees a quick off-(on) switching function. Rated for 25,000 cycles of durability and operating temperature range from -55°C to 85°C, this switch is designed for long-lasting performance in industrial settings. Upgrade your control panels with the LP9 Series for a reliable and efficient solution.
