LP9-61111D2A

OTTLP9_61111D2A
Heilind Number:OTTLP9-61111D2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61111D2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

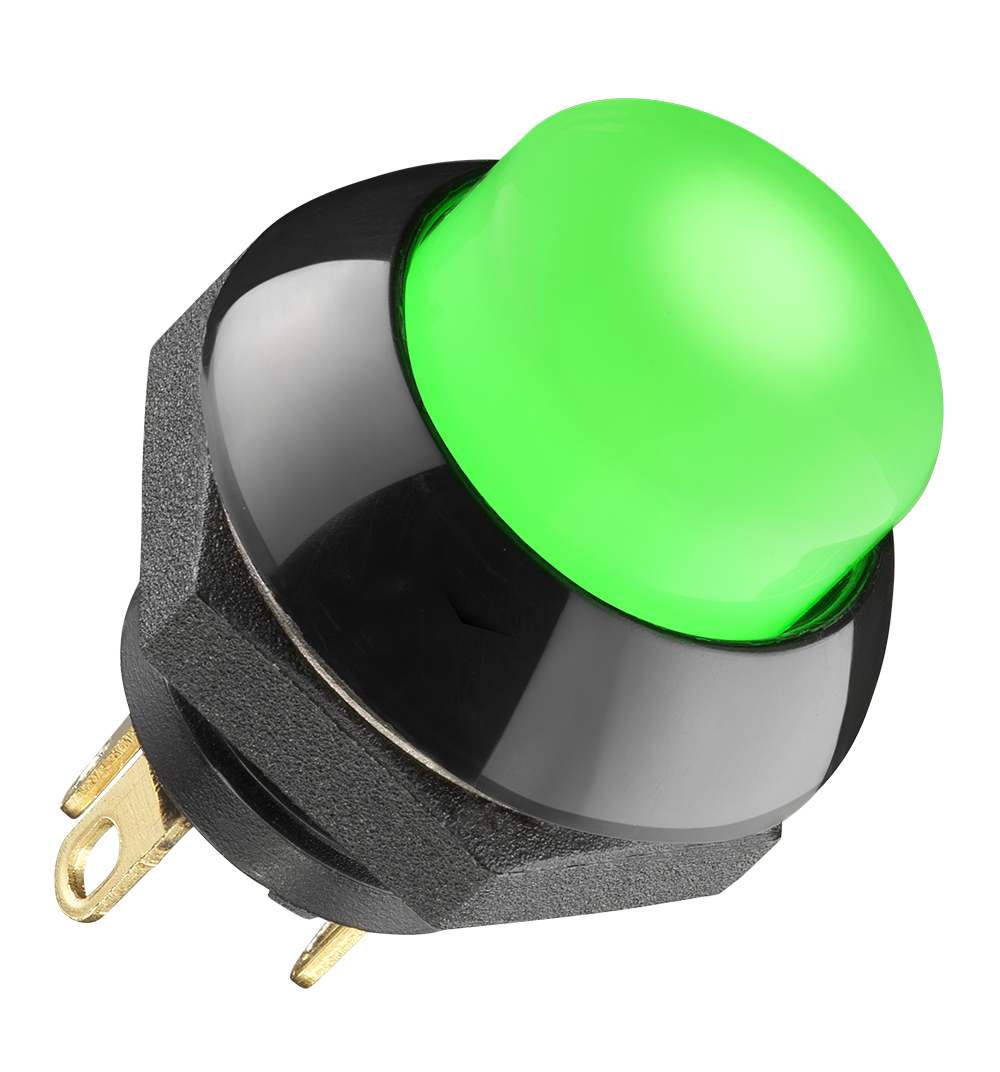

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61111D2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP9-61111D2A

Detailed Description

The LP9 Series Illuminated Dome Pushbutton Switch, SKU LP9-61111D2A, offers reliable performance in demanding environments. Featuring a White-Translucent cap and Blue illumination, this switch is easily visible even in low light conditions. With an IP6K8S rating, it is dust-tight and water-resistant, suitable for outdoor and industrial applications. The Raised Dome Button actuator, made of durable Thermoplastic, provides tactile feedback and ensures a long lifespan with a durability rating of 25,000 cycles. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC/28VDC, this switch is versatile and can be used in a variety of settings. Its Panel Mount design and Solder termination make installation hassle-free. The SPST-NO contact configuration, with Brass contacts plated in Gold, guarantees reliable conductivity. Designed for Off-(On) operation, this switch is perfect for control panels, machinery, and automotive applications. Experience convenience and efficiency with the LP9 Illuminated Dome Pushbutton Switch.
