LP9-61111G2A

OTTLP9_61111G2A
Heilind Number:OTTLP9-61111G2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61111G2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

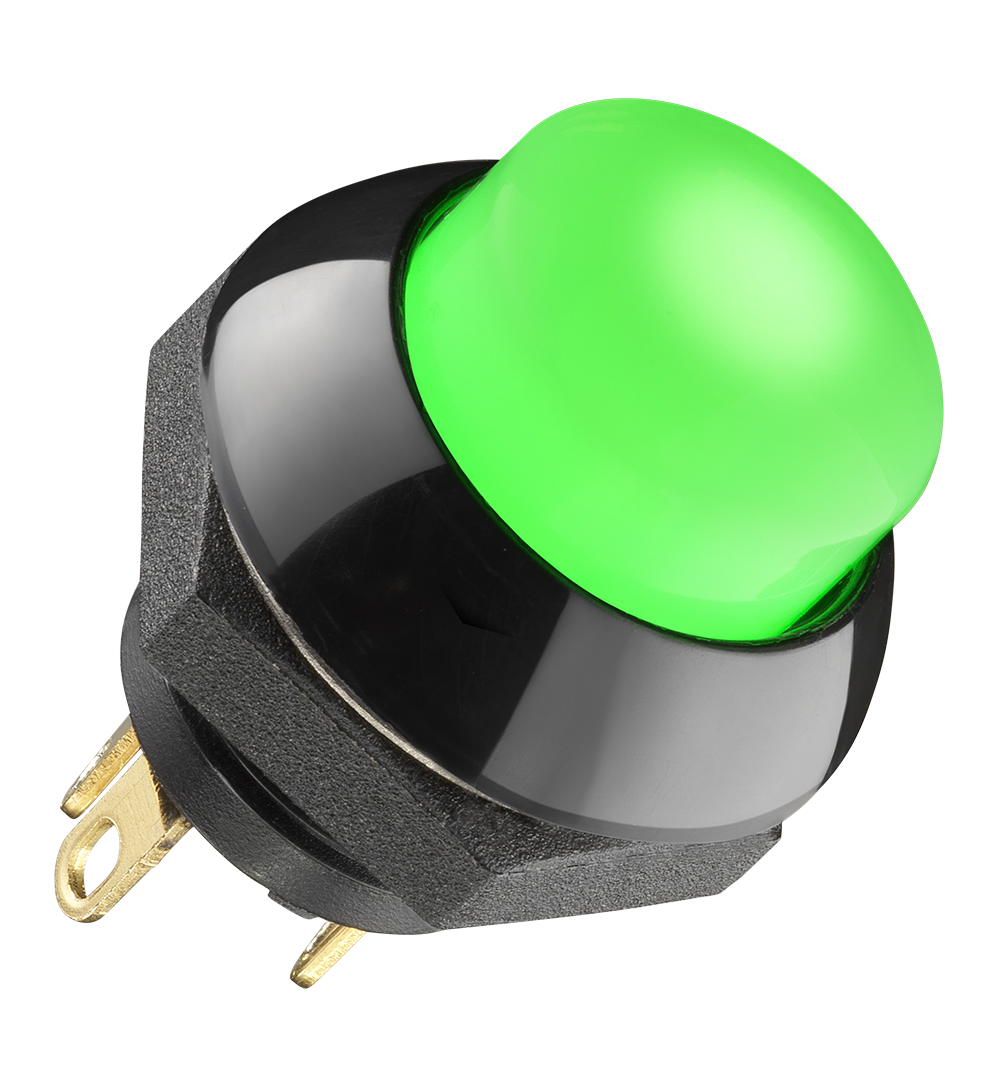

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61111G2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP9-61111G2A

Detailed Description

The LP9 series LP961111G2A Illuminated Dome Pushbutton Switch features a sleek design with a White-Translucent cap and Black housing, perfect for panel mounting. Its durable construction and sealed structure, with an IP6K8S rating, ensure reliable performance in various environments. The raised dome Button actuator, made of Thermoplastic, offers a comfortable and responsive touch. This switch operates on Off-(On) switch function, with a contact configuration of SPST-NO and a current rating of 5A. The contact materials of Brass with Gold plating guarantee efficient conductivity. Illuminated with a vibrant Green LED, it requires 12V for illumination, while the switch itself can handle 115VAC and 28VDC. With a wide operating temperature range from -55°C to 85°C and a durability rating of 25,000 cycles, this product is ideal for applications in the industrial and commercial sectors.
