LP9-61131F2A

OTTLP9_61131F2A
Heilind Number:OTTLP9-61131F2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61131F2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

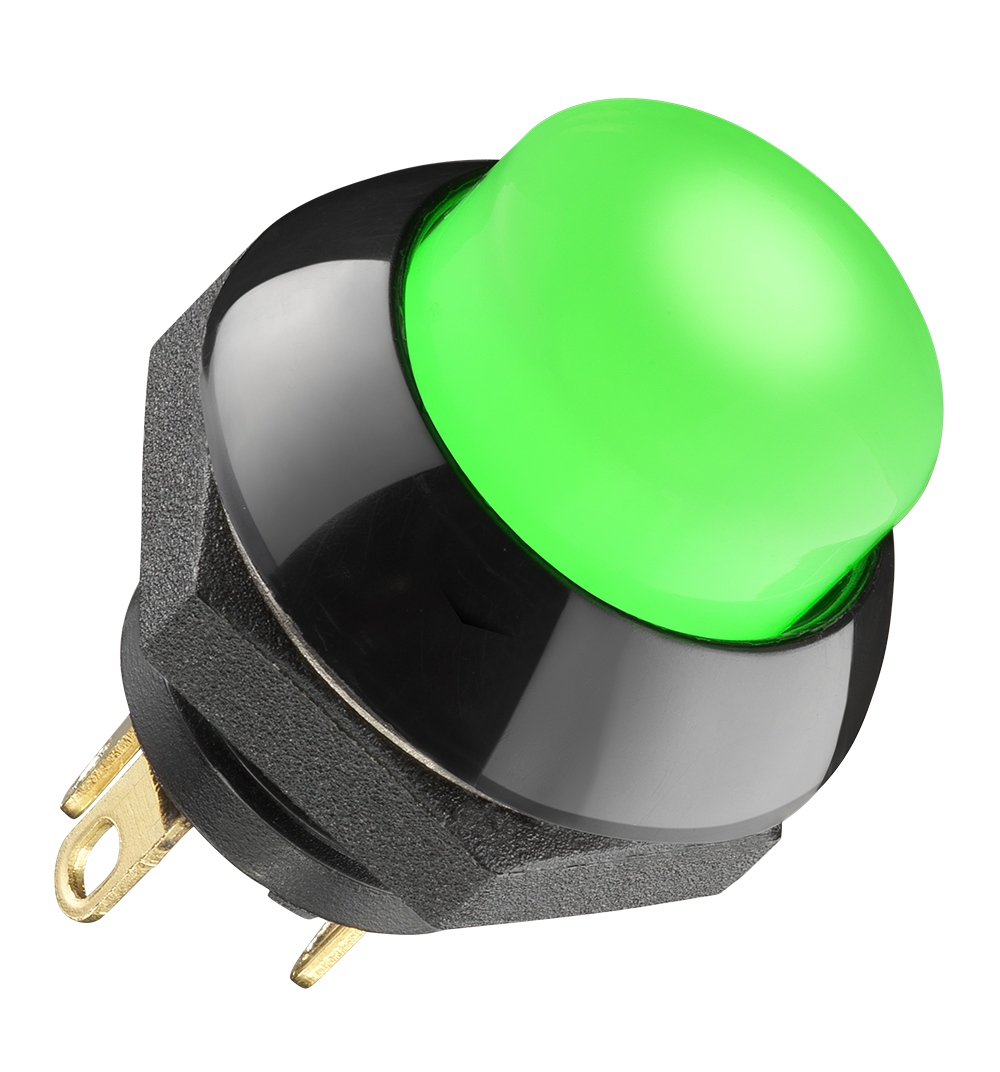

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61131F2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP9-61131F2A

Detailed Description

Introducing the LP9 Series Illuminated Dome Pushbutton Switch, a high-performance component designed for seamless panel mount installation. Featuring a durable black housing and a white translucent cap, this switch offers a sleek and modern aesthetic. The raised dome button, crafted from thermoplastic, ensures comfortable and reliable actuation. With an IP6K8S rating, it guarantees protection against dust and water ingress, making it suitable for a variety of environments. The red illumination, powered by a 12V voltage, enhances visibility, while the gold-plated brass contacts ensure efficient conductivity. Rated for 25,000 cycles of durability, this switch is built to last. Ideal for applications requiring a SPDT contact configuration and a current rating of 5A, it operates flawlessly in temperatures ranging from -55°C to 85°C. Trust in the LP9 Series for premium performance in industrial and commercial settings.
