LP9-61131H2A

OTTLP9_61131H2A
Heilind Number:OTTLP9-61131H2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61131H2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

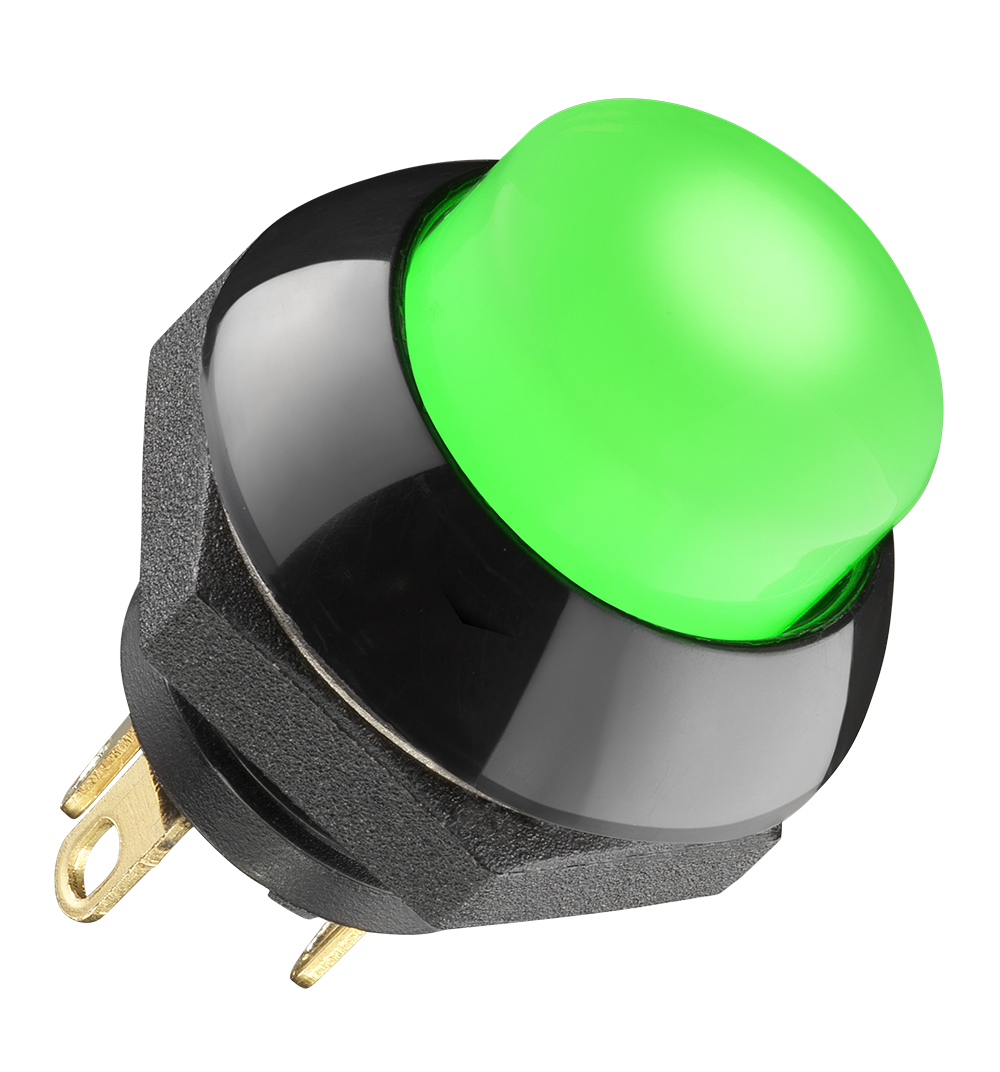

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61131H2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP9-61131H2A

Detailed Description

The LP9 series Illuminated Dome Pushbutton Switch, with SKU LP9-61131H2A, combines durability and functionality in a sleek design. Featuring a White Translucent cap and Amber illumination, this switch is not only visually appealing but also highly visible in any application. With an IP6K8S rating, it offers reliable performance even in harsh environments. The button actuator, made of Thermoplastic, ensures comfortable and responsive operation, while the Gold-plated Brass contacts guarantee efficient conductivity. Ideal for panel mounting, this switch has a current rating of 5A and a voltage rating of 115VAC/28VDC, making it suitable for a variety of industrial and commercial uses. Its SPDT contact configuration and On-(On) switch function provide versatile control options. With a durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, this sealed pushbutton switch is a dependable choice for demanding applications.
