LP9-61131K2A

OTTLP9_61131K2A
Heilind Number:OTTLP9-61131K2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-61131K2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

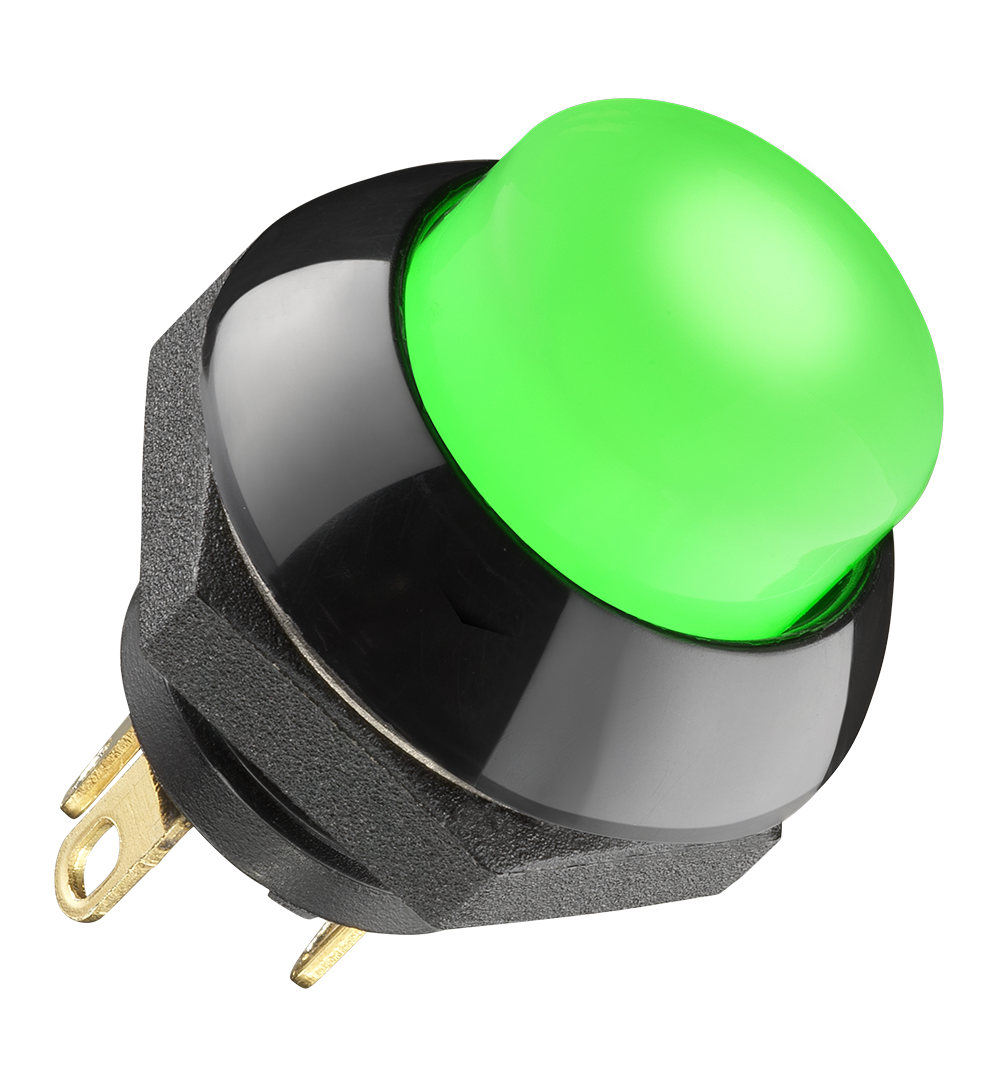

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-61131K2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
SKU:OTTLP9-61131K2A

Detailed Description

The LP9 Series LP961131K2A Illuminated Dome Pushbutton Switch is a high-performance component designed for reliable operation in demanding environments. Featuring a durable thermoplastic housing and gold-plated brass contacts, this switch offers exceptional durability with a rating of 25,000 cycles. The white translucent cap and white illumination color provide clear visibility, while the raised dome button and round actuator shape offer comfortable and precise operation. With an IP6K8S sealing rating, this switch is suitable for use in harsh conditions, and its panel mount design with solder termination ensures secure installation. The SPDT contact configuration and 5A current rating make it versatile for various applications. Whether in industrial machinery or automotive systems, the LP961131K2A switch guarantees long-lasting performance even in extreme temperatures ranging from -55°C to 85°C. Elevate your control panel with this rugged and illuminated pushbutton switch.
