LP9-62111E2A

OTTLP9_62111E2A
Heilind Number:OTTLP9-62111E2A
Manufacturer:OTTO Controls
Manufacturer Number:LP9-62111E2A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

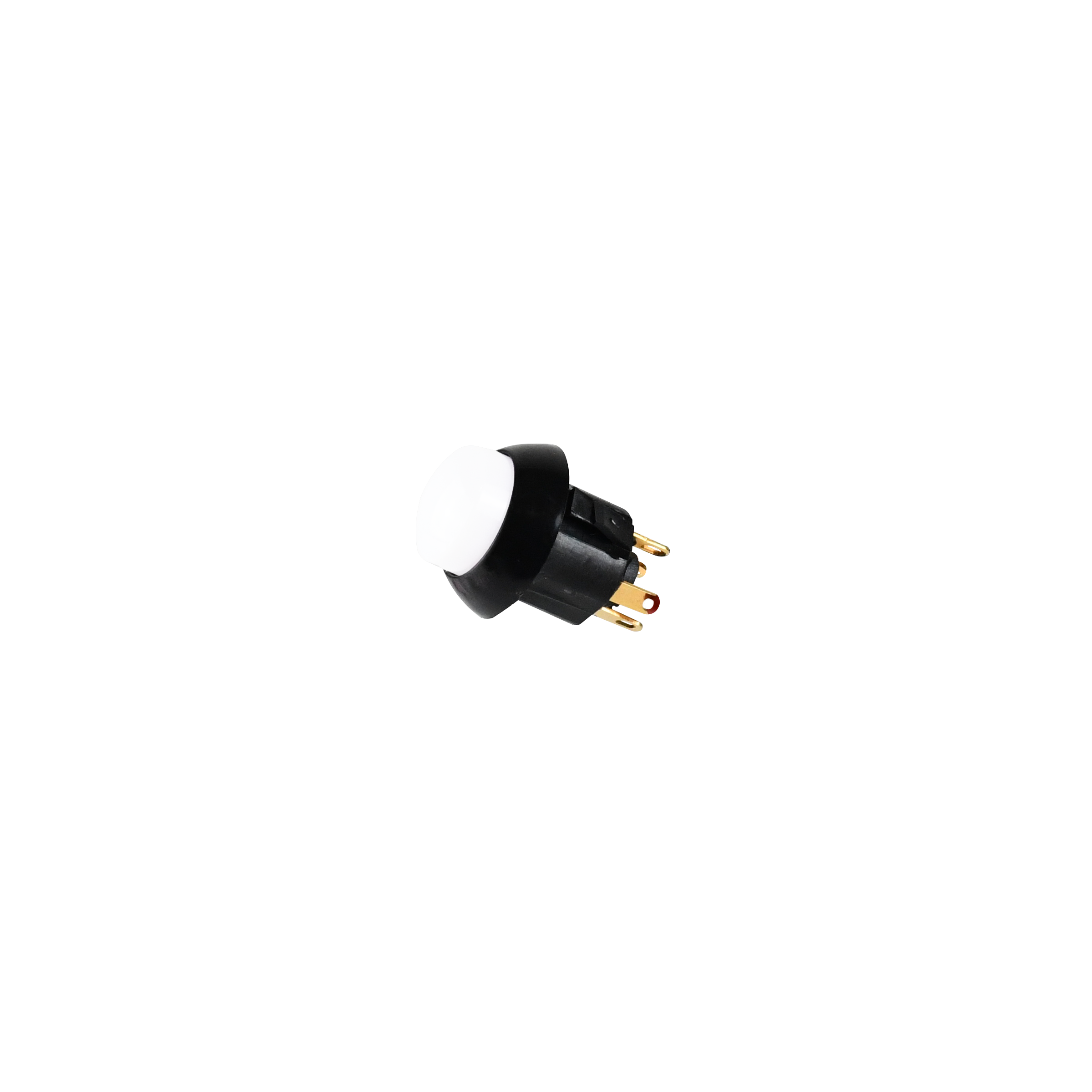

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-62111E2A
Series:LP9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.39 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:2 V
SKU:OTTLP9-62111E2A

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch, featuring a sleek design with a white translucent cap, perfect for panel mounting applications. With an IP6K8S rating for dust and water resistance, this switch ensures durability in various environments. The raised dome button, made of thermoplastic, offers a tactile response for user convenience. Gold-plated brass contacts guarantee reliable conductivity, while the SPST-NO configuration provides Off-(On) functionality. Illuminated by white LEDs with a 2V voltage requirement, this switch is ideal for low-light settings. Operating between -55°C to 85°C, it's suitable for a wide range of conditions. Rated for 25,000 cycles, it offers long-lasting performance. The LP962111E2A switch is a high-quality solution for applications in the automotive, industrial, and aerospace sectors.
