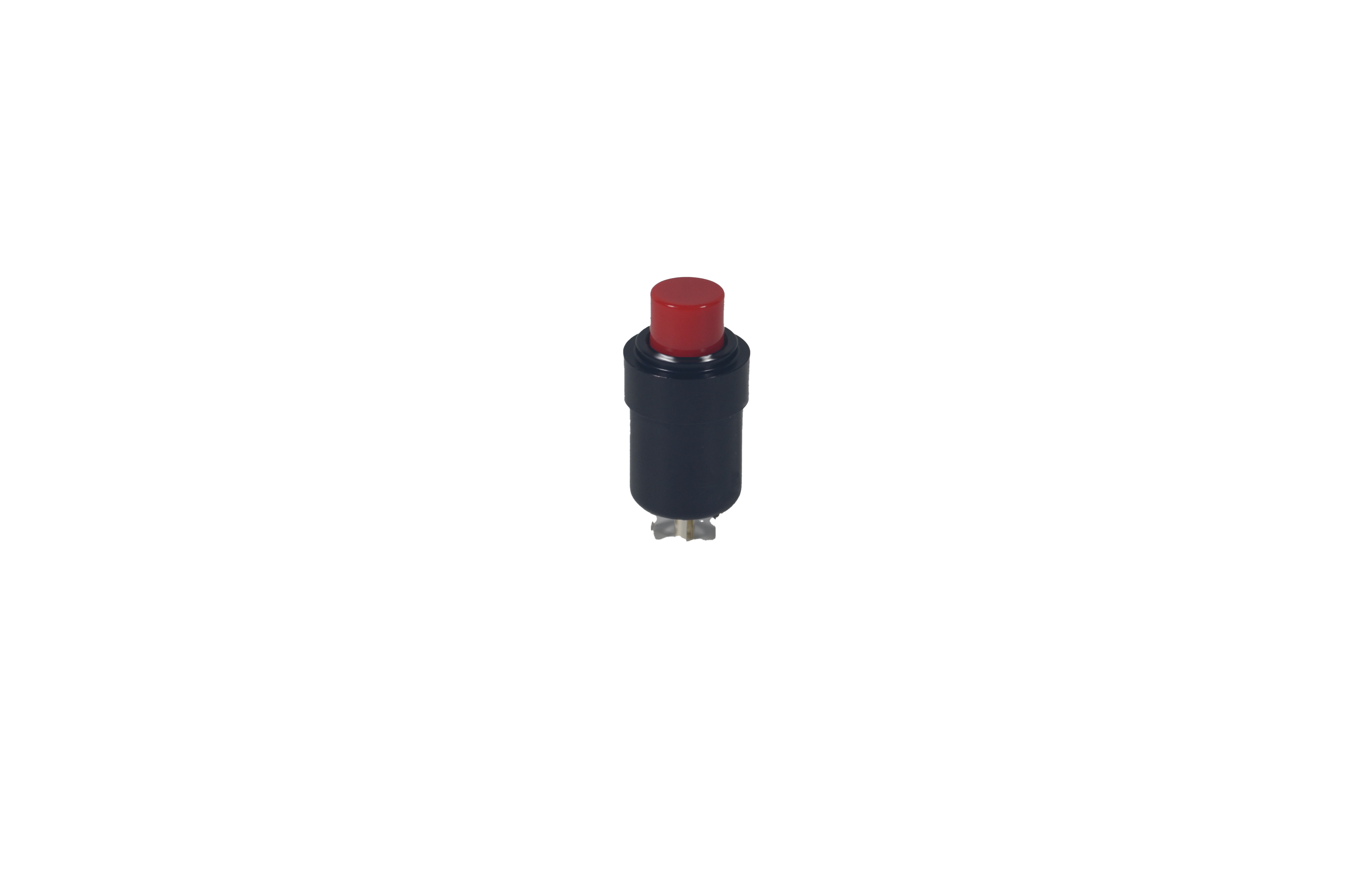

P1-11116

OTTP1_11116
Heilind Number:OTTP1-11116
Manufacturer:OTTO Controls
Manufacturer Number:P1-11116
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Precision Snap-Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P1-11116
Series:P1
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP1-11116

Detailed Description

The P1-11116 Precision Snap-Action Pushbutton Switch is a reliable and durable component designed for seamless panel mount installation. Featuring a sleek black aluminum case with a blue flat button actuator, this switch offers a tactile and responsive user experience. With an IP2 rating, it ensures protection against solid objects and limited ingress of liquids. The SPST-NO contact configuration, with silver-plated brass contacts, guarantees efficient conductivity. Operating at a maximum temperature of 85°C and a minimum of -55°C, it is suitable for a wide range of environments. With a 10A current rating, 115VAC voltage rating, and 28VDC voltage rating, this switch is ideal for various applications. Its 25,000 cycle durability rating ensures long-lasting performance, making it a reliable choice for industrial and commercial use.
