| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-22122 |
| Series: | P1 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 2 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP1-22122 |
P1-22122
Specifications
Detailed Description

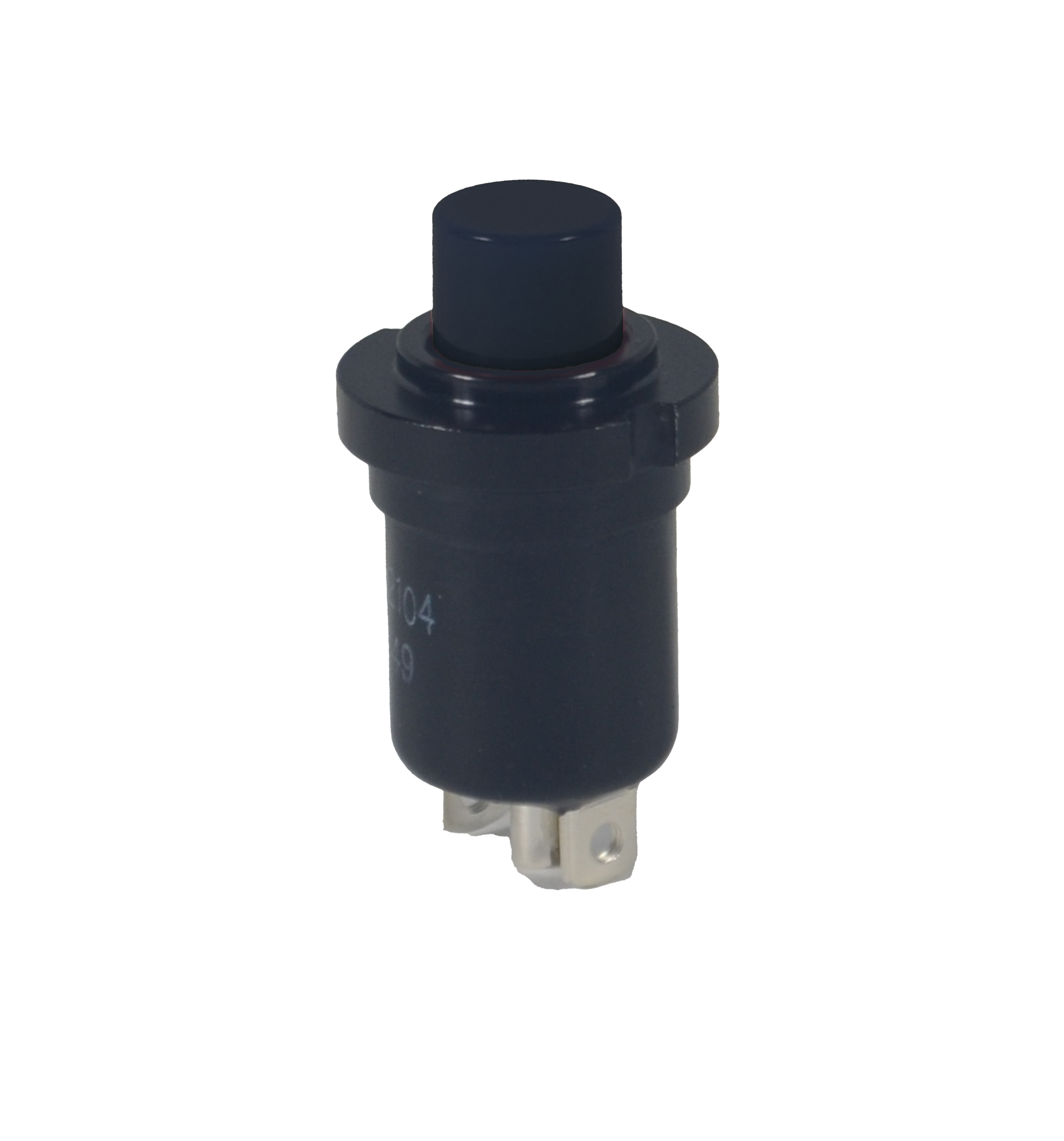

Introducing the P1-22122 Precision Snap-Action Pushbutton Switch from the P1 series. Featuring a sleek black design with a durable aluminum housing, this switch is perfect for panel mount installations. The flat round button actuator, made of thermoplastic, offers a comfortable and reliable user experience. With an off-(on) switch function and a single-pole, single-throw normally open contact configuration, it ensures seamless operation. Rated for 10A at 28VDC and 115VAC, this switch guarantees efficient performance. Its IP2 seal and high durability of 25,000 cycles make it ideal for various applications. From industrial machinery to consumer electronics, trust the P1-22122 for precision control.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
