| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-52212 |
| Series: | P1 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 2 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .25 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP1-52212 |
P1-52212
Specifications
Detailed Description

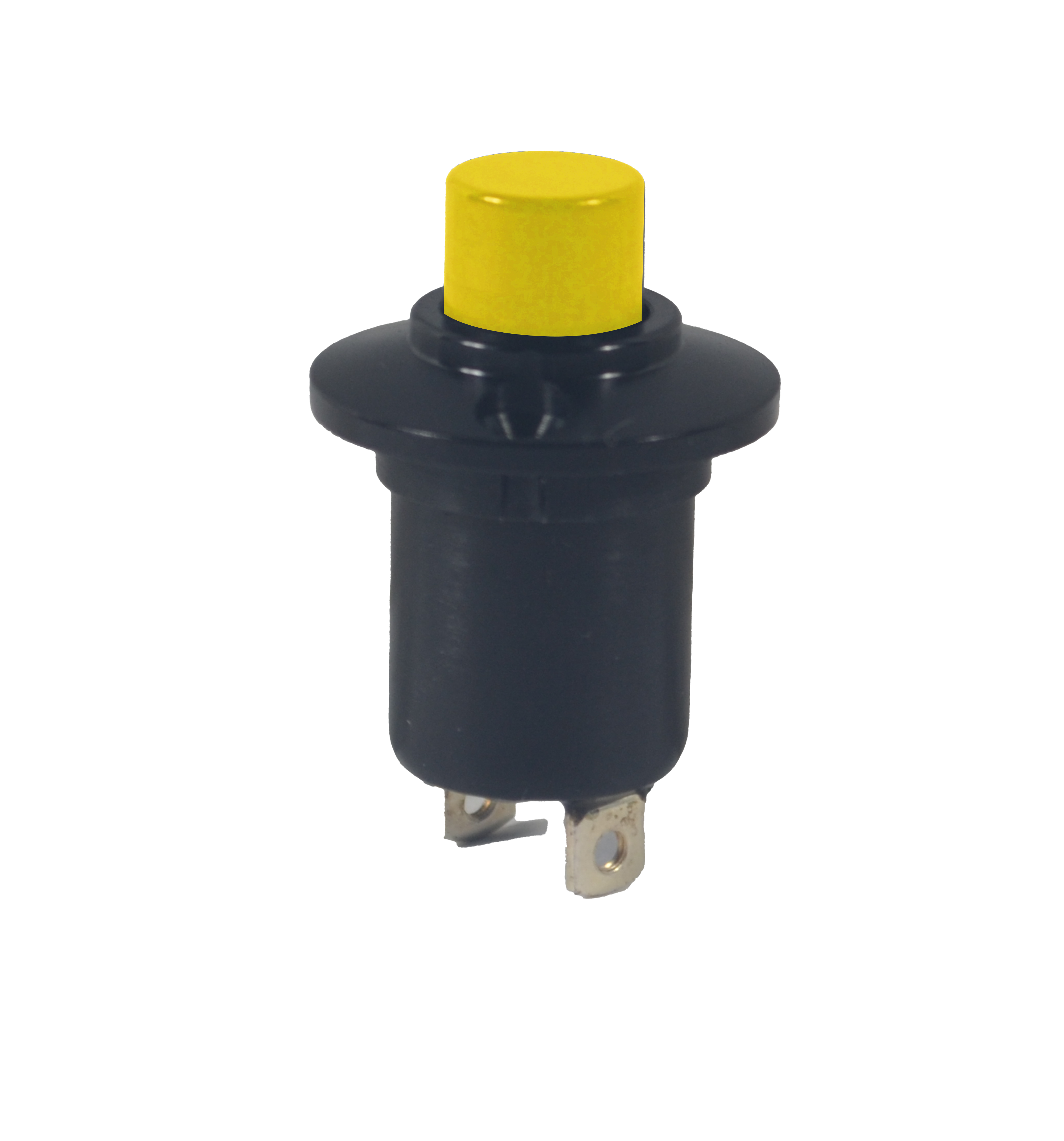

Introducing the P1-52212 Push Button Switch from the P1 series, a sleek and durable solution for your control panel needs. With a black aluminum housing and a sealed design, this switch is built to last in various environments. The flat round button actuator, made of thermoplastic, offers a comfortable and precise operation. Featuring a SPST-NC contact configuration with silver-plated brass contacts, it ensures reliable performance. Operating at 115 VAC and 28 VDC with a 10 A current rating, this switch is suitable for a range of applications. Whether you're in industrial or commercial settings, the P1-52212 guarantees longevity with a durability rating of 25,000 cycles. Trust in its precision and quality for your switching requirements.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
