| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P3-11111W |
| Series: | P3 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP3-11111W |
P3-11111W
Specifications
Detailed Description

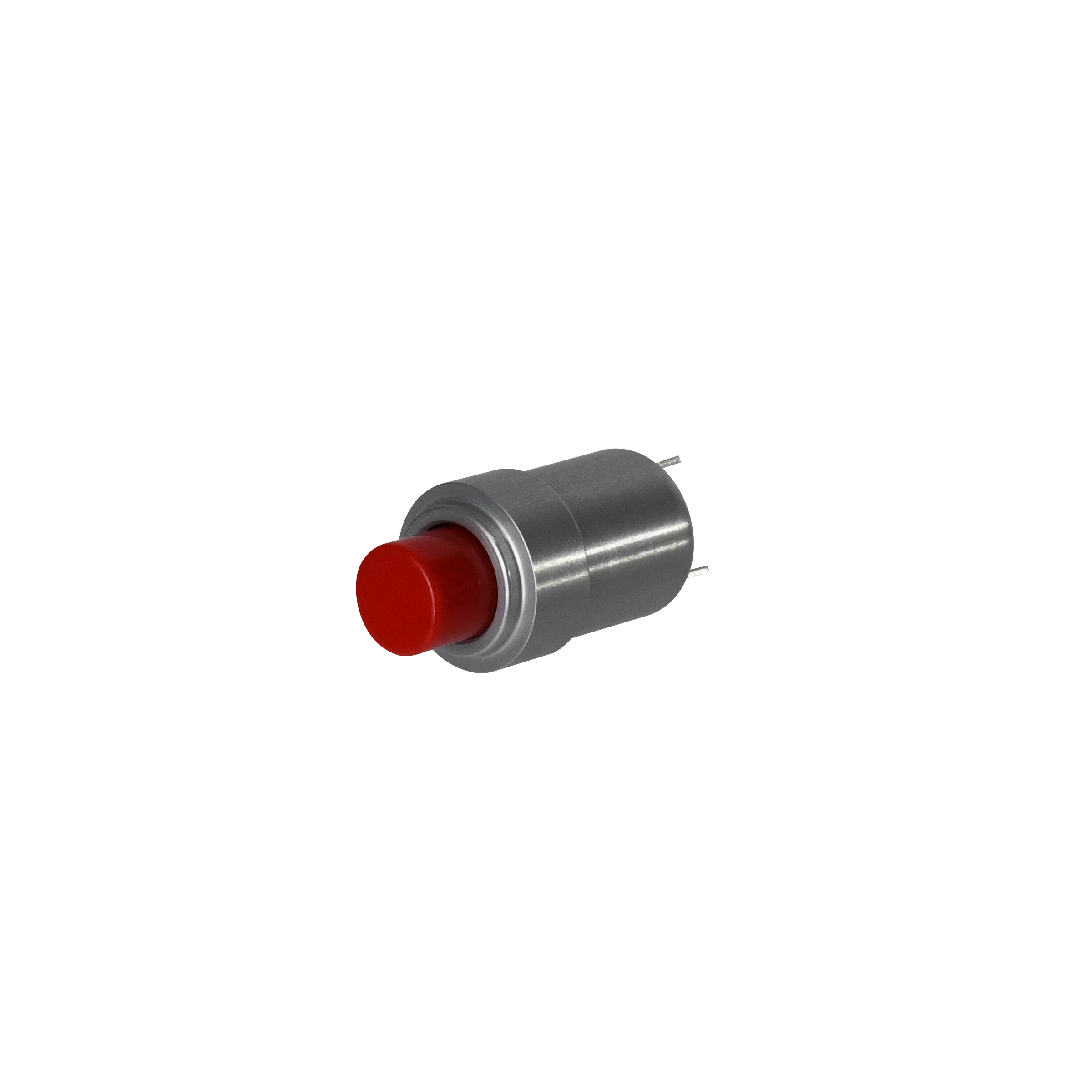

Introducing the P3-11111W, a high-performance sealed momentary action pushbutton switch from the P3 series. With a vibrant red cap and a sleek silver case, this switch not only stands out visually but also boasts impressive functionality. Featuring an IP6K8S rating, it guarantees reliable performance even in harsh environments. The flat round button actuator, made of durable thermoplastic, ensures comfortable operation. With a 10 A current rating, it's suitable for various applications. The SPST-NO contact configuration and brass contact material provide efficient electrical connectivity. Designed for panel mounting with solder termination, installation is a breeze. Its aluminum housing and 100,000 cycle durability rating make it a long-lasting solution. Whether in industrial settings or automotive applications, this switch, with a voltage rating of 115 VAC and 28 VDC, is a dependable choice. Operating smoothly between -55°C to 85°C, it's built to perform consistently. Don't settle for less when it comes to pushbutton switches - choose the P3-11111W for quality and reliability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
