| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P3-33129 |
| Series: | P3 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | White |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP3-33129 |

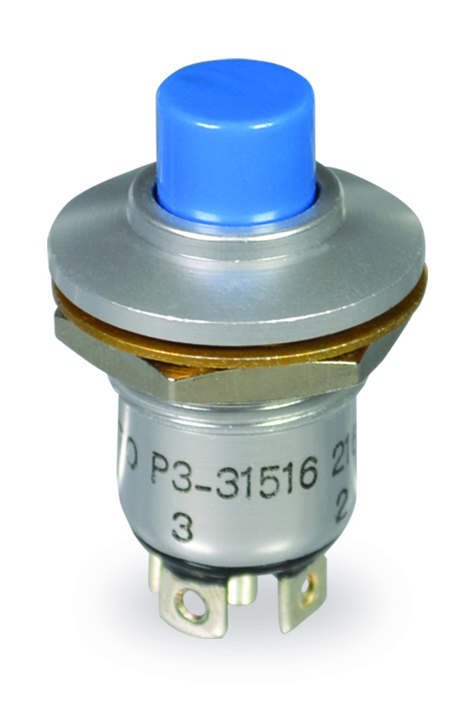

P3-33129
Specifications
Detailed Description
Introducing the P3-33129, a durable and reliable Sealed Momentary Action Pushbutton switch designed for high-performance applications. With a rugged aluminum housing and thermoplastic actuator, this button is built to withstand tough environments. Its IP6K4S rating ensures protection against dust and water ingress, while gold-plated contacts guarantee efficient conductivity. The SPST-NO contact configuration offers a single-pole, normally open connection, ideal for controlling circuitry with a 10A current rating at 115VAC or 28VDC. Panel mountable for easy installation, this switch is perfect for industrial machinery, automotive systems, and aerospace technology. Trust in the P3 series for top-quality, long-lasting components.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
