| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P3-61111W |
| Series: | P3 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP68S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat Push/Pull) |
| Case Color: | Silver |
| Actuator Material: | Nylon |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .38 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP3-61111W |

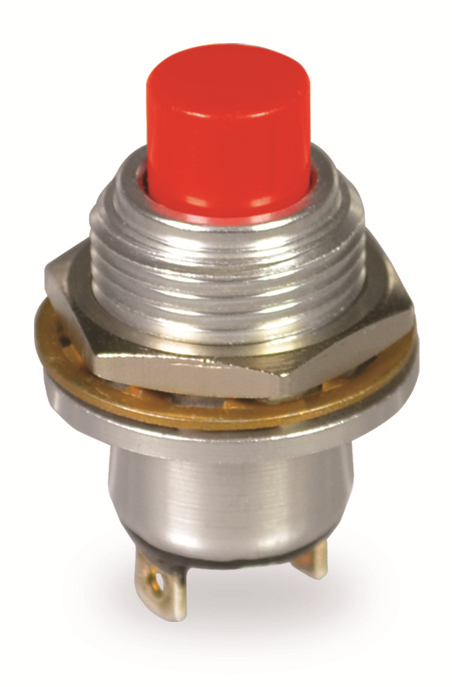

P3-61111W
Specifications
Detailed Description
Introducing the P3-61111W, a rugged and reliable Sealed Momentary Action Pushbutton from our P3 series. With its durable aluminum housing and IP68S rating, this button is built to withstand harsh environments. The flat red button, with a round actuator shape, offers a comfortable and intuitive interface. Featuring a panel mount design and solder termination, installation is a breeze. Rated for 10A at 115VAC and 28VDC, with a contact configuration of SPST-NO, it ensures efficient power control. Ideal for applications requiring high durability, this switch guarantees performance with a 100,000-cycle lifespan. From industrial machinery to outdoor equipment, the P3-61111W is the perfect solution for demanding environments.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
