| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P3-64112 |
| Series: | P3 |
| Cap Color: | Black |
| IP Rating: | IP6K4S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat Push/Pull) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .38 in |
| Contact Plating: | Gold |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Nylon |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP3-64112 |
P3-64112
Specifications
Detailed Description

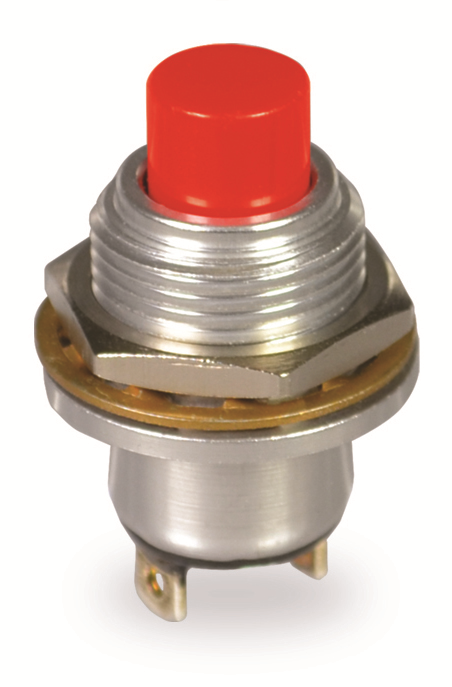

The P3-64112 from the P3 series is a robust push button switch designed for reliable performance in demanding environments. With a durable construction featuring an aluminum housing and nylon actuator, this switch is built to withstand tough conditions. Its IP6K4S rating ensures protection against dust and water ingress, while the gold-plated brass contacts guarantee efficient conductivity. The switch, with a flat push/pull button actuator, offers a comfortable user experience. Operating at 115 VAC or 28 VDC, it is suitable for a range of applications. With a long lifespan of 100,000 cycles and a wide temperature range from -55°C to 85°C, the P3-64112 is a high-quality, sealed momentary action pushbutton switch that delivers exceptional performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
