| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P3-D111123W |
| Series: | P3-D |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush Dome) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Orange |
| Actuator Length: | .48 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP3-D111123W |
P3-D111123W
Specifications
Detailed Description

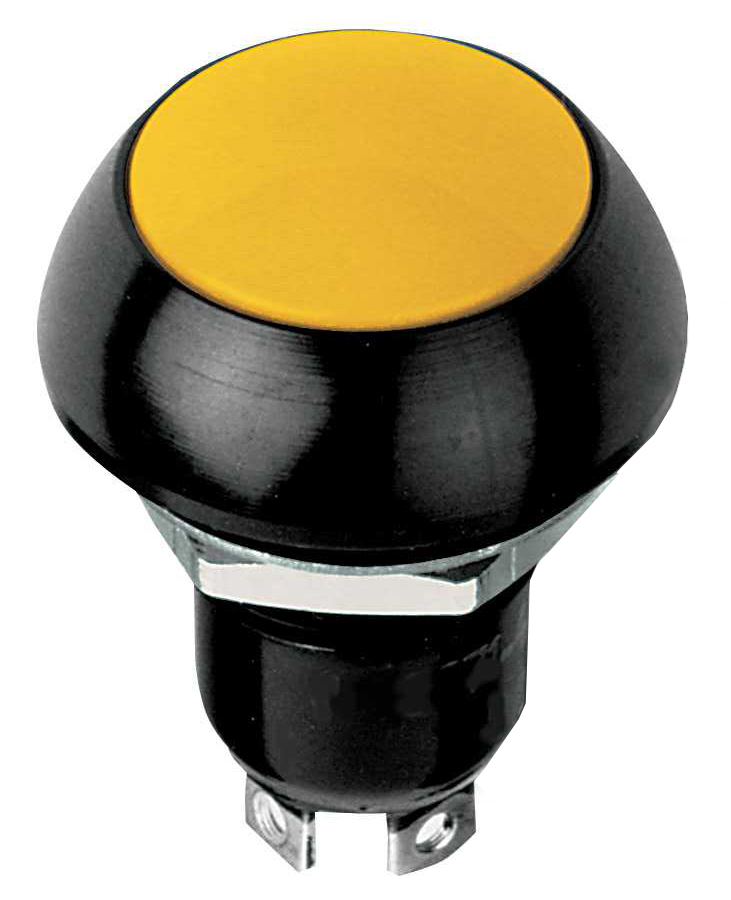

The P3-D111123W, part of the P3-D series, is a rugged and reliable pushbutton switch designed for demanding environments. Featuring an orange flush dome actuator and a black aluminum housing, this switch is not only visually striking but also highly durable. With an IP6K8S rating, it offers full protection against dust and water ingress. The SPST-NO contact configuration ensures reliable performance, while the 10A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. The momentary action switch has a lifespan of 100,000 cycles, guaranteeing long-term usage. Whether used in industrial machinery or outdoor equipment, the P3-D111123W delivers uncompromising quality and performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
