| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-123112 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 6 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .16 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-123112 |
P4-123112
Specifications
Detailed Description

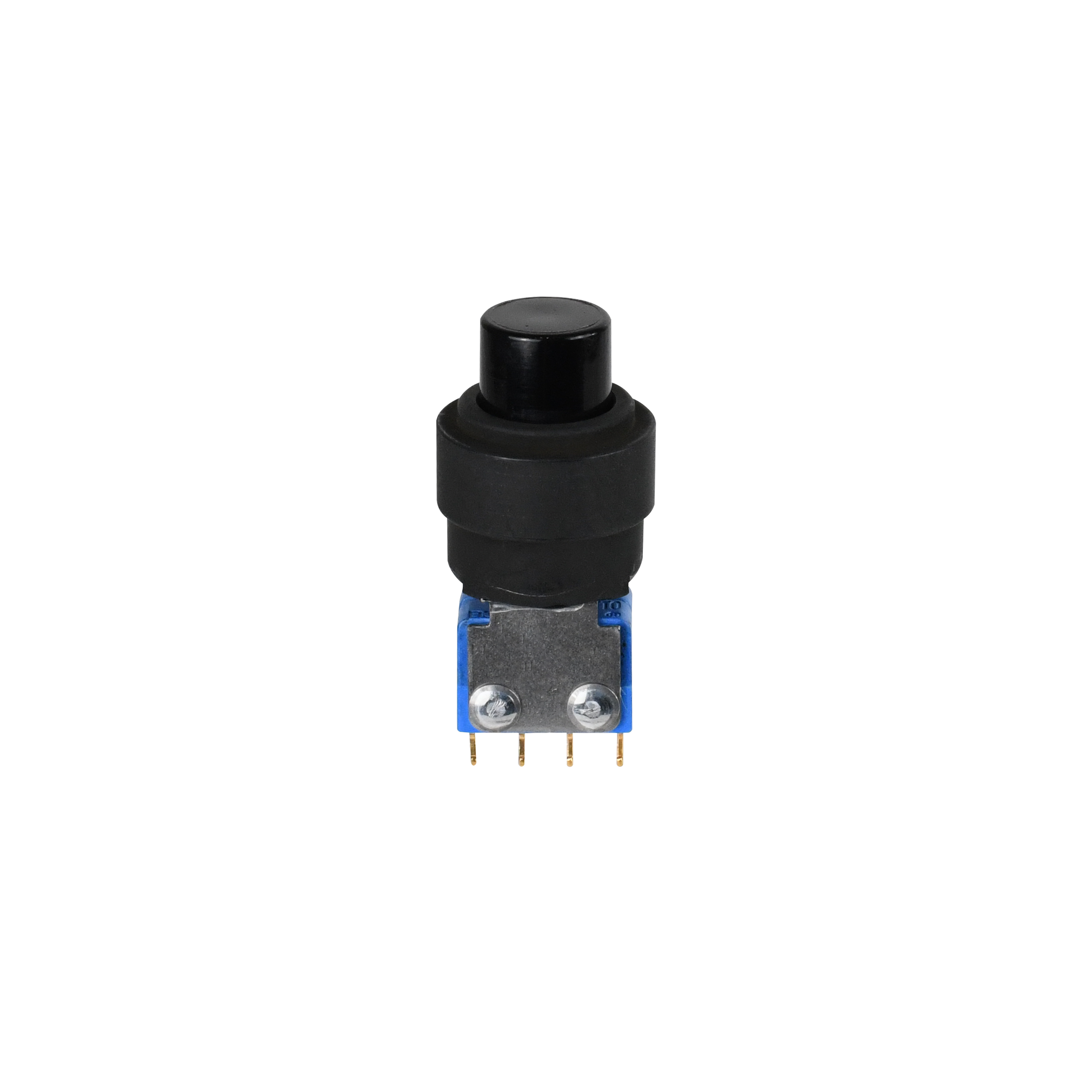

Introducing the P4-123112 Push Button Switch, a reliable and versatile component for your electronic devices. Featuring a sleek design with a black button and silver case, this non-illuminated switch is perfect for applications where clarity is key. The flat, round actuator ensures easy operation, while the gold-plated brass contacts guarantee high conductivity. With a durable aluminum housing and sealed construction, it's built to withstand tough environments. Ideal for panel mounting, it offers a DPDT 6 Terminal configuration with a 5A current rating and 28VDC voltage rating. Operating smoothly in temperatures ranging from -55°C to 125°C, and with a lifespan of 25,000 cycles, this push button switch is a dependable choice for industrial and commercial use. Upgrade your control systems with the P4 series P4123112.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
