| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-124122 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT 4 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .16 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-124122 |

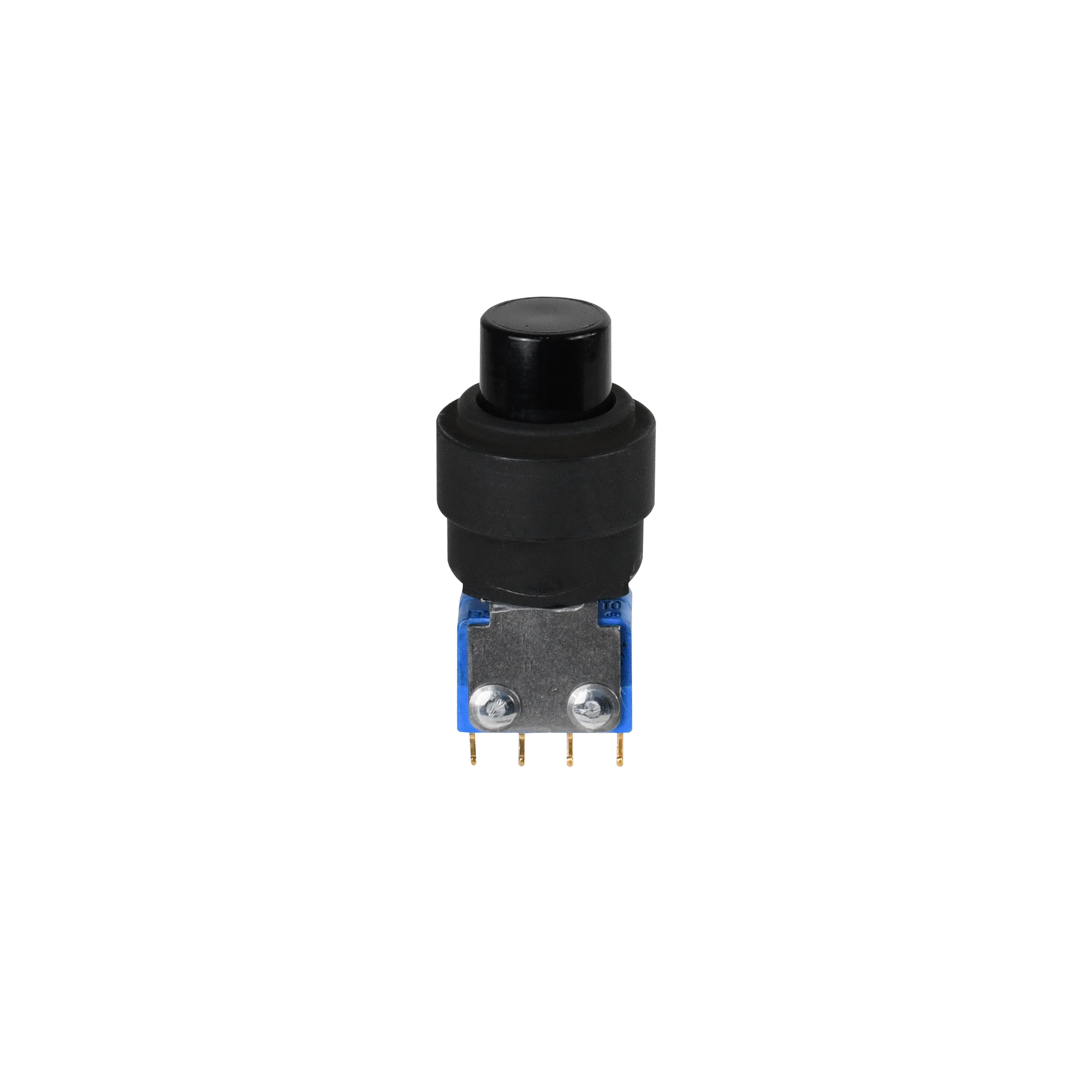

P4-124122
Specifications
Detailed Description
Introducing the P4 Series Two Step Custom Pushbutton Switch with SKU P4-124122, a high-quality and durable component designed for demanding applications. This RoHS compliant switch features a black actuator button and case, adding a sleek and professional touch to any panel. With a non-illuminated design, it offers reliable performance in various settings. The round, flat actuator ensures easy operation, while its sealed construction and gold-plated brass contacts guarantee long-lasting functionality. Ideal for industrial use, this switch has a 5A current rating and operates at temperatures ranging from -55°C to 125°C. Whether for aerospace, automotive, or other hi-rel environments, the P4 Series switch delivers exceptional quality and performance.
