| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-313111 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 6 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | PC Pin |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-313111 |
P4-313111
Specifications
Detailed Description

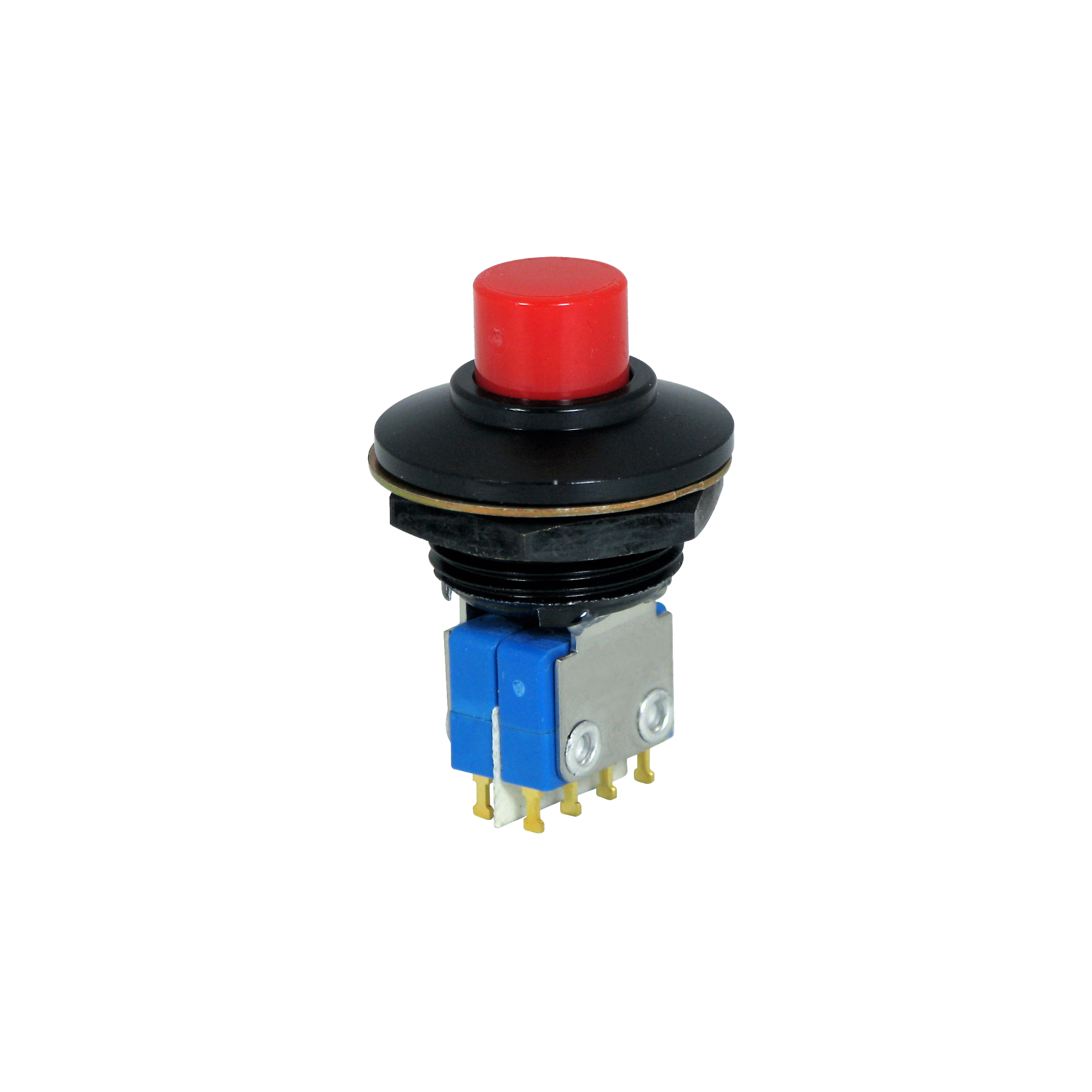

Introducing the P4-313111, a top-of-the-line momentary action push button switch designed for high-performance applications. With a durable aluminum housing and IP6K4S sealing, this switch is built to withstand even the harshest environments. The red flat button actuator, featuring gold-plated contacts, ensures reliable operation with a 25,000 cycle durability rating. Perfect for panel mount installations, this switch offers DPDT 6 terminal configuration and can handle up to 115VAC or 28VDC. Whether in industrial, automotive, or aerospace settings, the P4 series guarantees precision and longevity. Upgrade to the P4-313111 for superior control and reliability in your systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
