| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-321121 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT 3 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-321121 |

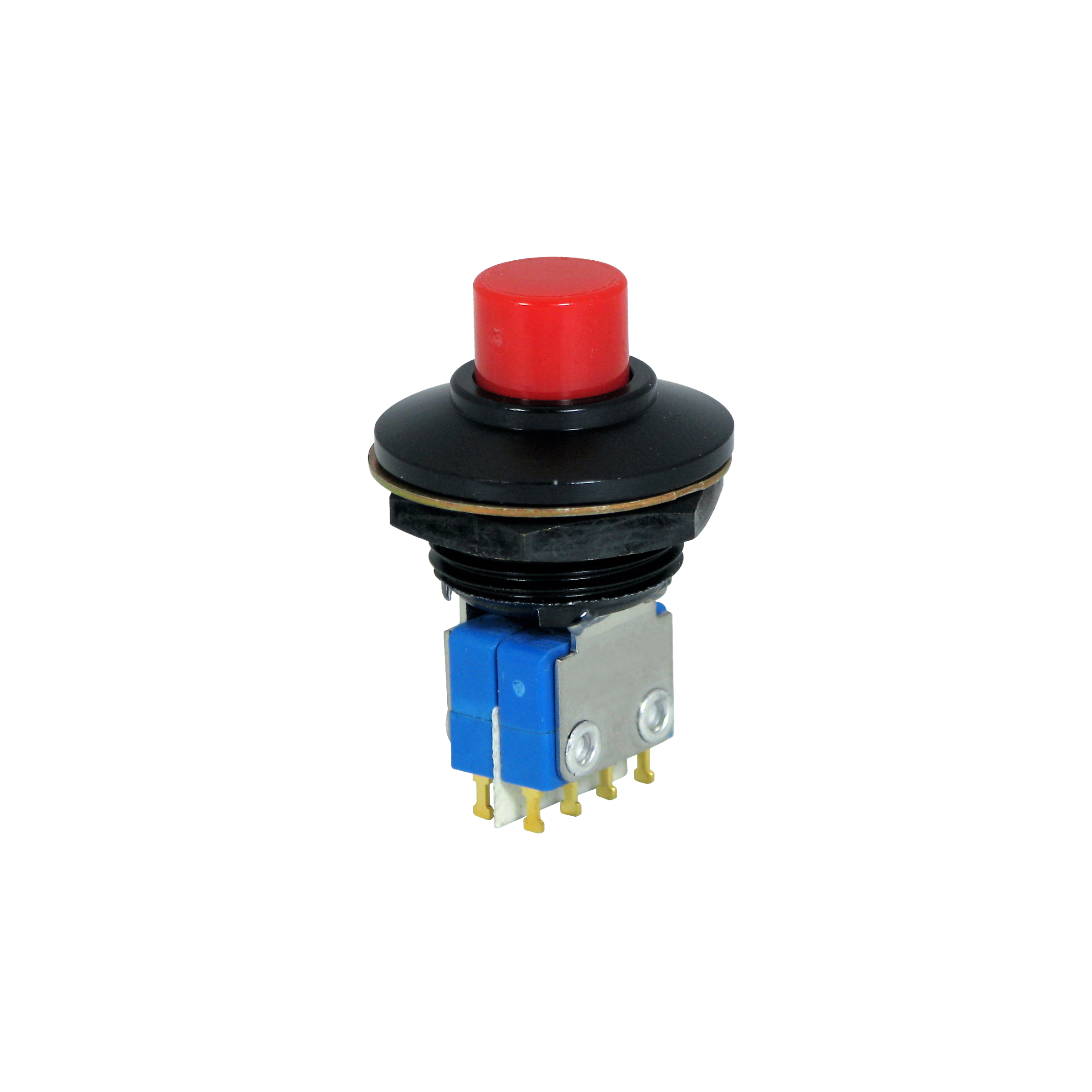

P4-321121
Specifications
Detailed Description
Introducing the P4 series Auxiliary Actuators, featuring a distinctive red cap and durable black aluminum housing. Designed for reliable performance in demanding environments, these panel-mounted switches boast an IP6K4S sealing rating and a lifespan of 25,000 cycles. The flat round button actuator, crafted from thermoplastic, offers a comfortable touch. With a current rating of 5A, gold-plated contacts, and SPDT 3-terminal configuration, these switches ensure efficient power transmission. Operating at temperatures ranging from -40°C to 85°C, and with voltage ratings of 115VAC and 28VDC, they guarantee versatility. Perfect for industrial applications, the P4 Auxiliary Actuators deliver precision control and exceptional durability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
