| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-324322 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 8 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-324322 |

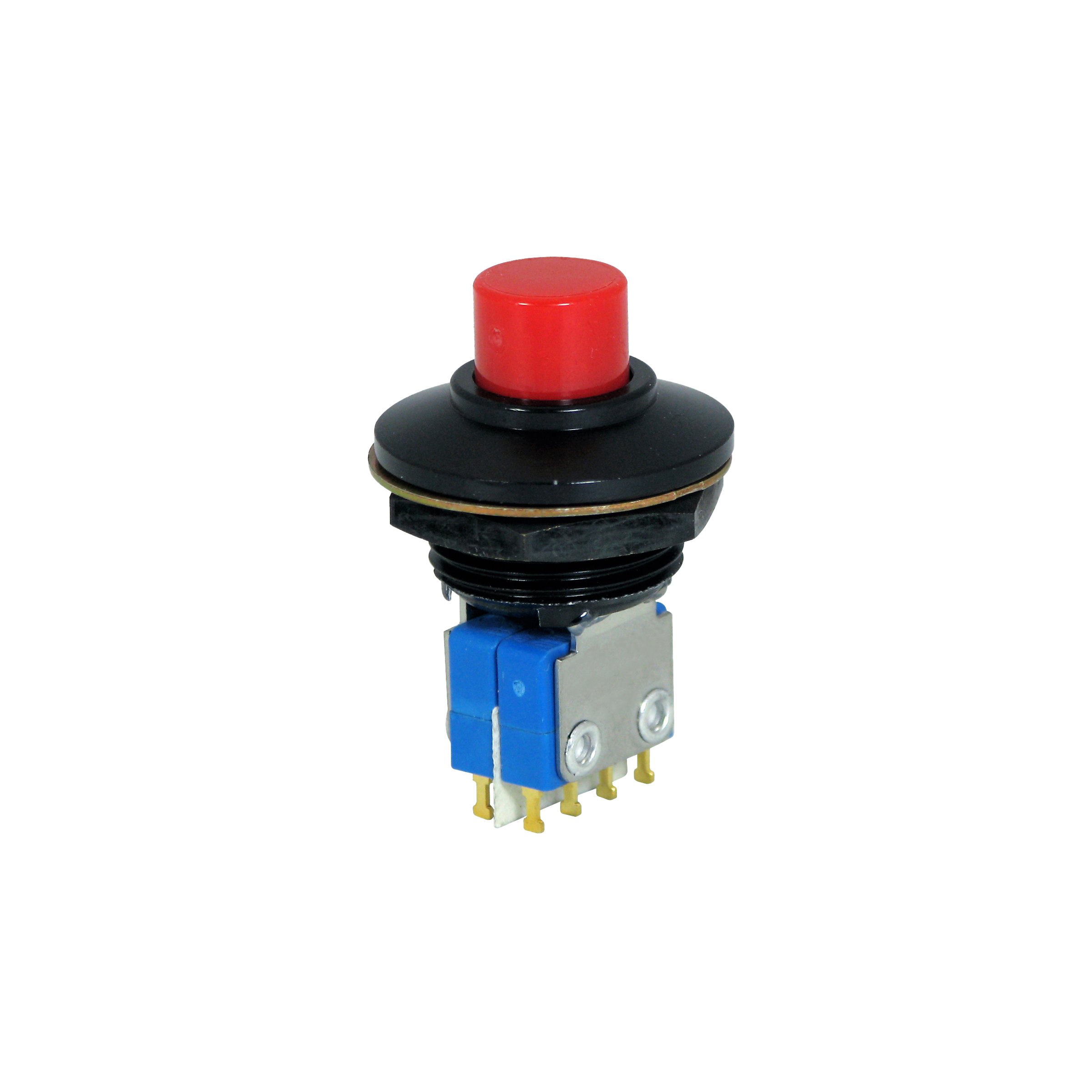

P4-324322
Specifications
Detailed Description
Introducing the P4-324322, a high-performance push button switch designed for reliability in demanding environments. Featuring a sleek black aluminum housing with a panel mount installation, this switch is not only durable but also sealed for protection against dust and water, boasting an IP6K4S rating. The DPDT 8 Terminal contact configuration with gold plating ensures efficient conductivity, while the thermoplastic actuator and silver contacts guarantee smooth operation even in extreme temperatures ranging from -40°C to 85°C. With a current rating of 5A and a voltage rating of 115VAC/28VDC, it is suitable for various applications. The two-step custom pushbutton design offers precise control, making it ideal for industrial and commercial use. Upgrade to the P4 series for superior performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
