| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-334221 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Silver |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 8 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Wrap |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-334221 |
P4-334221
Specifications
Detailed Description

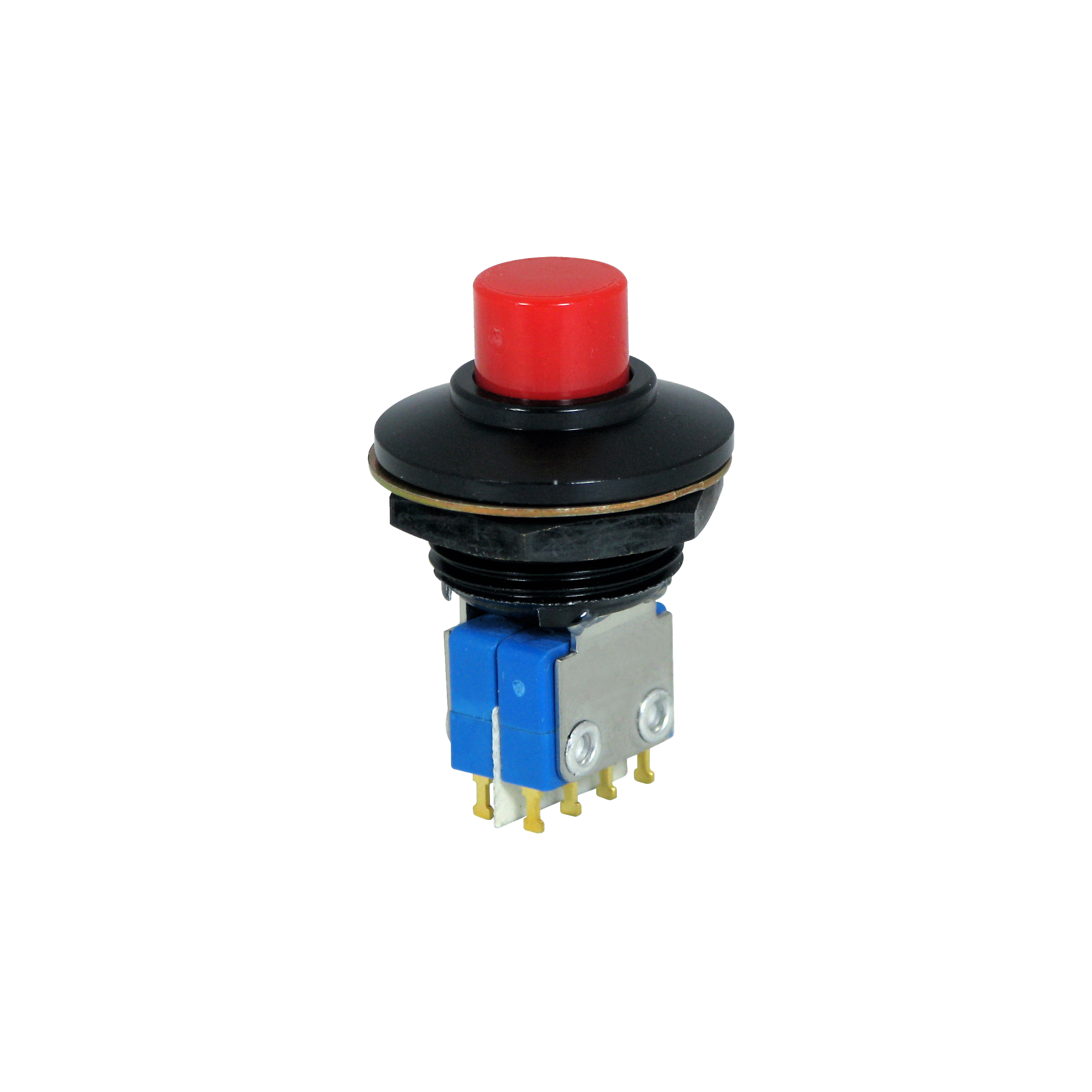

Introducing the P4 Series Red Button Sealed Push Button Switch with unparalleled performance and durability. Engineered for reliability in demanding environments, this switch features an IP6K4S rating for protection against dust and water ingress. The round, flat button actuator ensures comfortable operation, while the thermoplastic construction and gold-plated contacts guarantee longevity. With a DPDT 8 Terminal configuration and 5A current rating, it's suitable for a variety of applications. Whether used in industrial machinery or aerospace systems, this switch excels with a 25,000-cycle durability rating and wide operating temperature range from -40°C to 85°C. Panel mountable and wire wrap compatible, installation is a breeze. Trust in the P4 Series for high-performance switching solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
