| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-514321W |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 8 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | PC Pin |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .19 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-514321W |

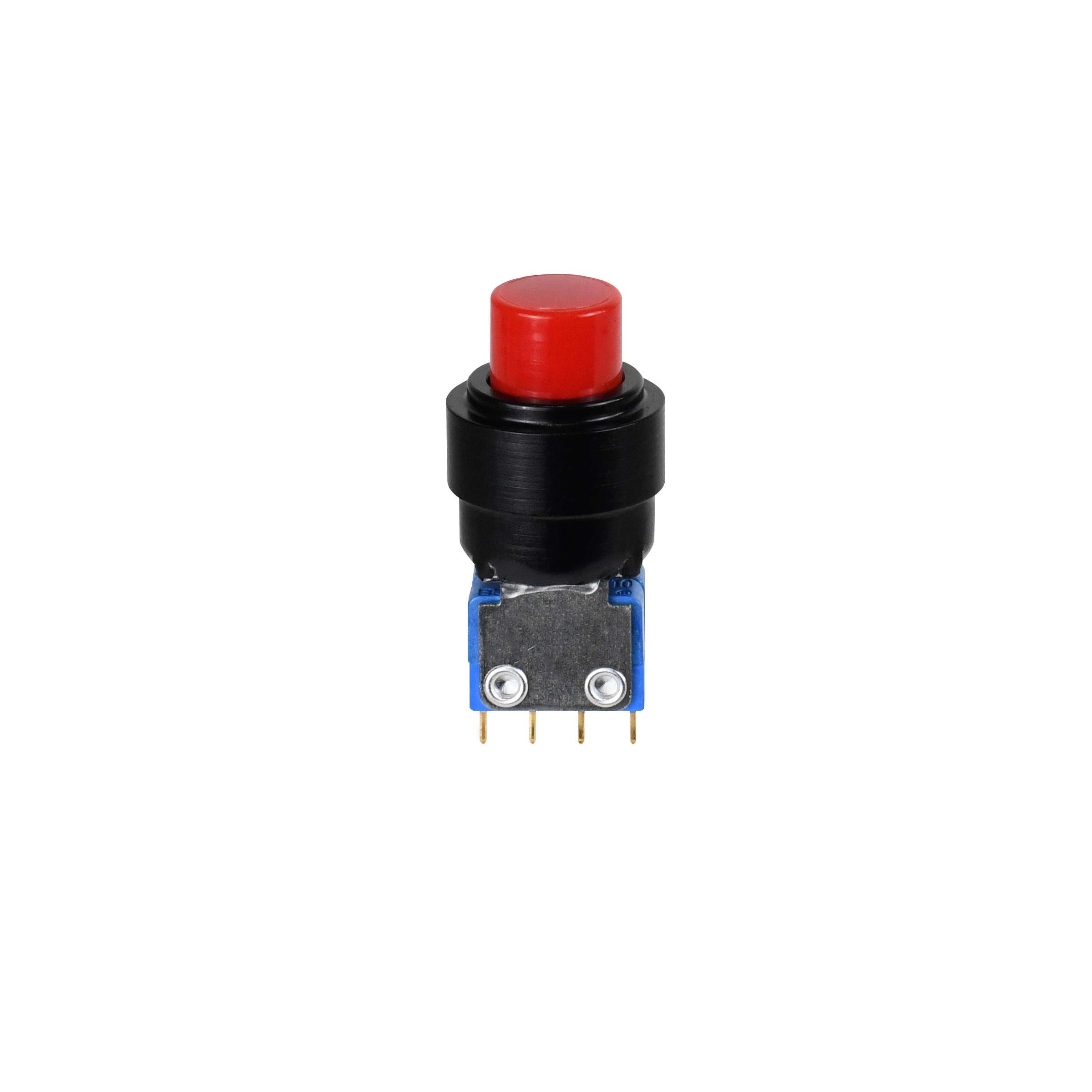

P4-514321W
Specifications
Detailed Description
Introducing the P4-514321W, a high-performance push button switch from the P4 series. Featuring a sleek design with a red button and black case, this switch is not only visually striking but also durable, with a rating of 25,000 cycles. Its sealed construction, with an IP6K8S rating, ensures reliable operation even in harsh environments. The DPDT 8 Terminal configuration and 5A current rating make it suitable for a variety of applications. With gold-plated brass contacts and an aluminum housing, it guarantees long-term performance. Whether used in industrial machinery or consumer electronics, this push button switch delivers precision control and peace of mind. Upgrade to the P4-514321W for seamless operation in any setting.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
