| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-524222 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 8 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .19 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-524222 |

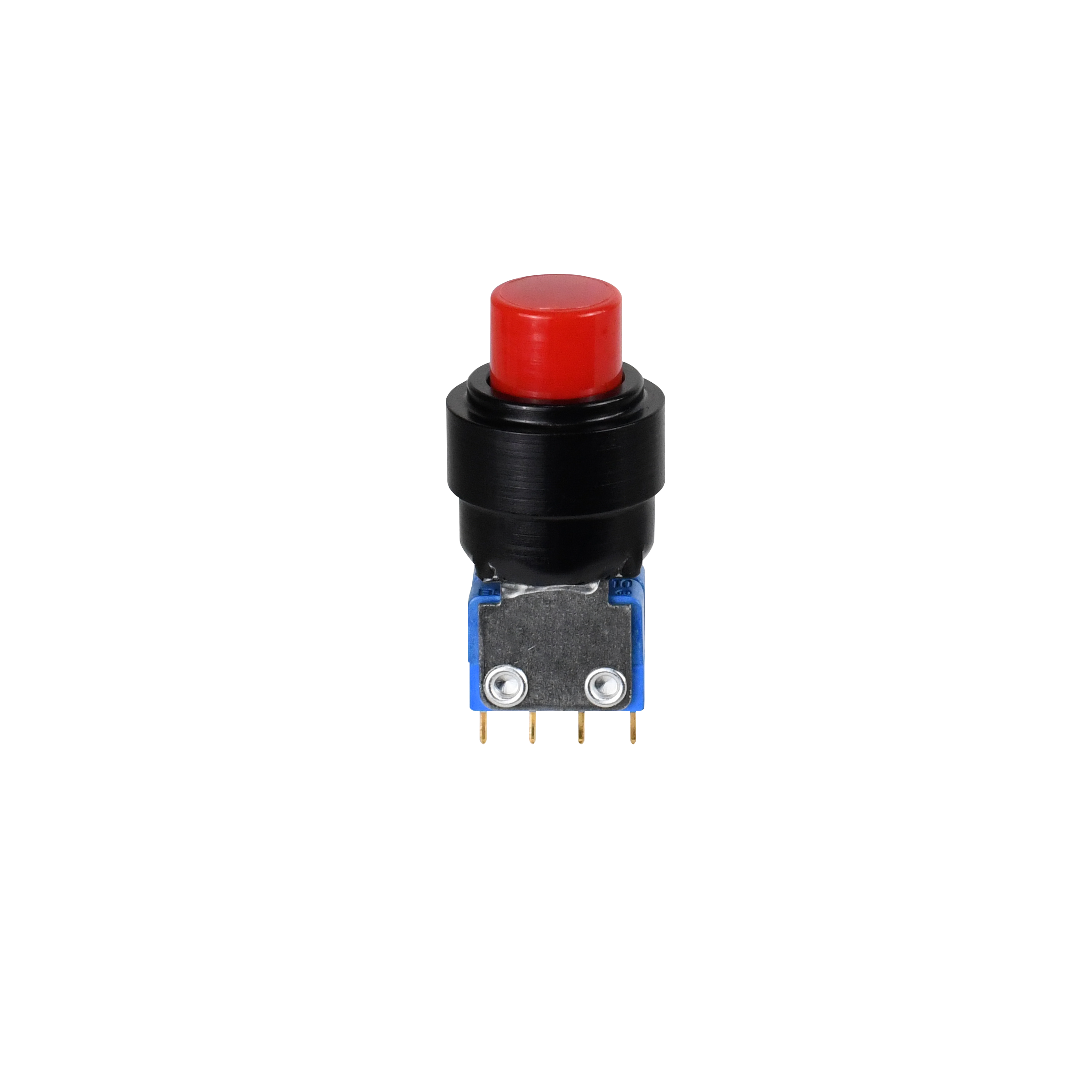

P4-524222
Specifications
Detailed Description
Introducing the P4-524222, a high-performance sealed push button switch from the P4 series. Designed for durability with a 25,000 cycle lifespan, this switch features a DPDT 8 Terminal contact configuration and a current rating of 5A. Its robust construction includes a black aluminum case and brass contacts with gold plating for reliable conductivity. The actuator, made of thermoplastic, offers a comfortable button (flat) with a round shape for easy operation. With an IP6K4S rating, it ensures protection against dust and water ingress, making it suitable for various applications. Ideal for panel mounting, the P4-524222 guarantees seamless performance in temperatures ranging from -40°C to 85°C. Whether in industrial, automotive, or aerospace settings, this switch is a dependable choice for controlling AC and DC circuits.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
