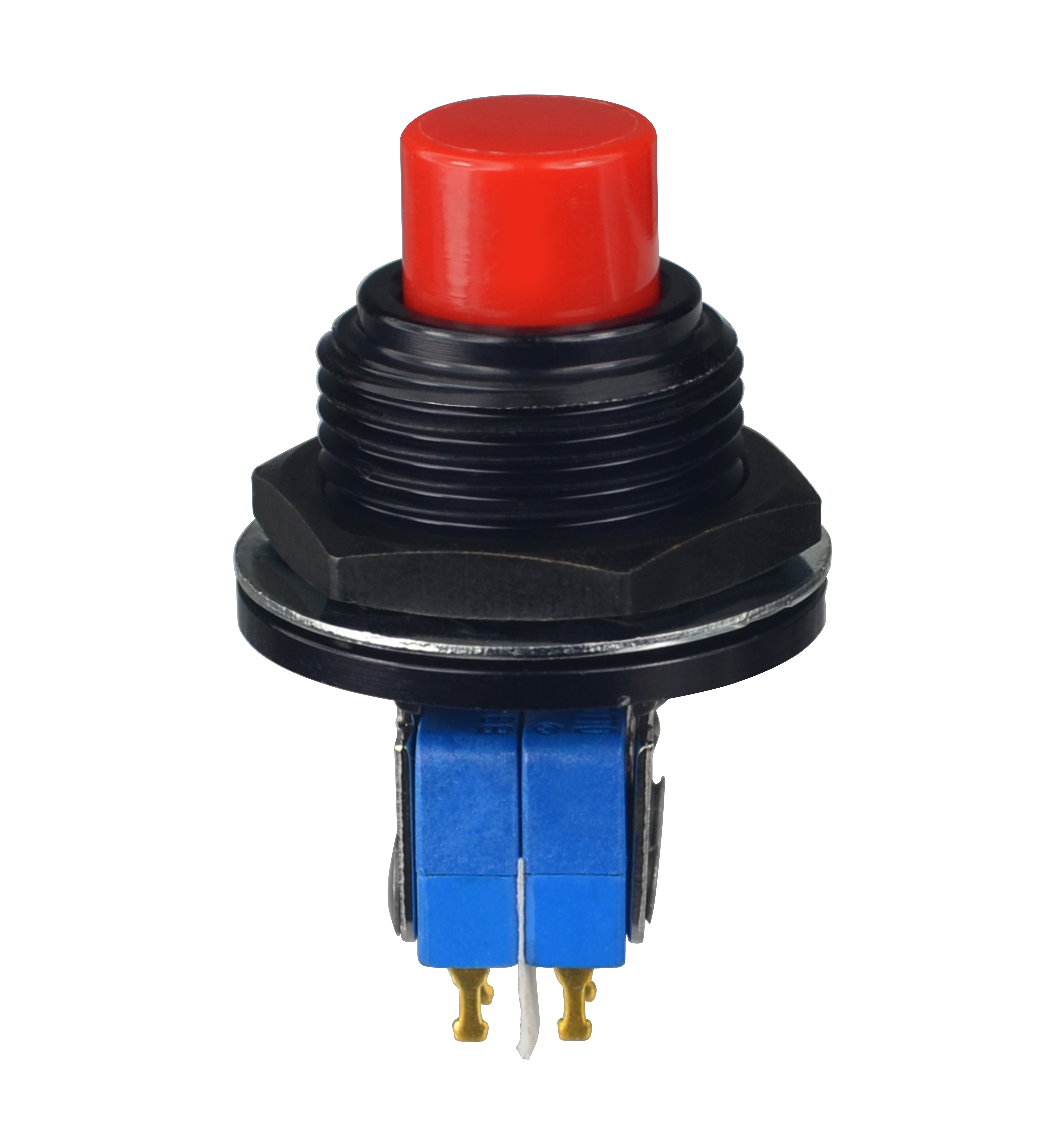

P4-613122

OTTP4_613122
Heilind Number:OTTP4-613122
Manufacturer:OTTO Controls
Manufacturer Number:P4-613122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Auxillary Actuators, Momentary Action, Two Step Custom Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P4-613122
Series:P4
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:DPDT 6 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:PC Pin
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP4-613122

Detailed Description

Introducing the P4-613122, a high-performance push button switch designed for durability and reliability. Featuring a sleek black cap and case, this switch is suitable for panel mounting and boasts an IP6K4S rating, ensuring protection against dust and water ingress. The button's flat design with a round actuator shape offers comfortable operation, while the gold-plated brass contacts guarantee excellent conductivity. With a current rating of 5A and a voltage rating of 115VAC/28VDC, this switch is ideal for various applications. Its sealed construction, made of aluminum housing and thermoplastic actuator, ensures long-lasting performance even in harsh environments. The DPDT 6-terminal contact configuration and 25,000 cycles durability rating make it a reliable choice for demanding tasks. From industrial machinery to aerospace systems, the P4-613122 is the perfect auxiliary actuator for momentary two-step custom pushbutton functionality.
