| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-634221 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 8 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Wire Wrap |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-634221 |

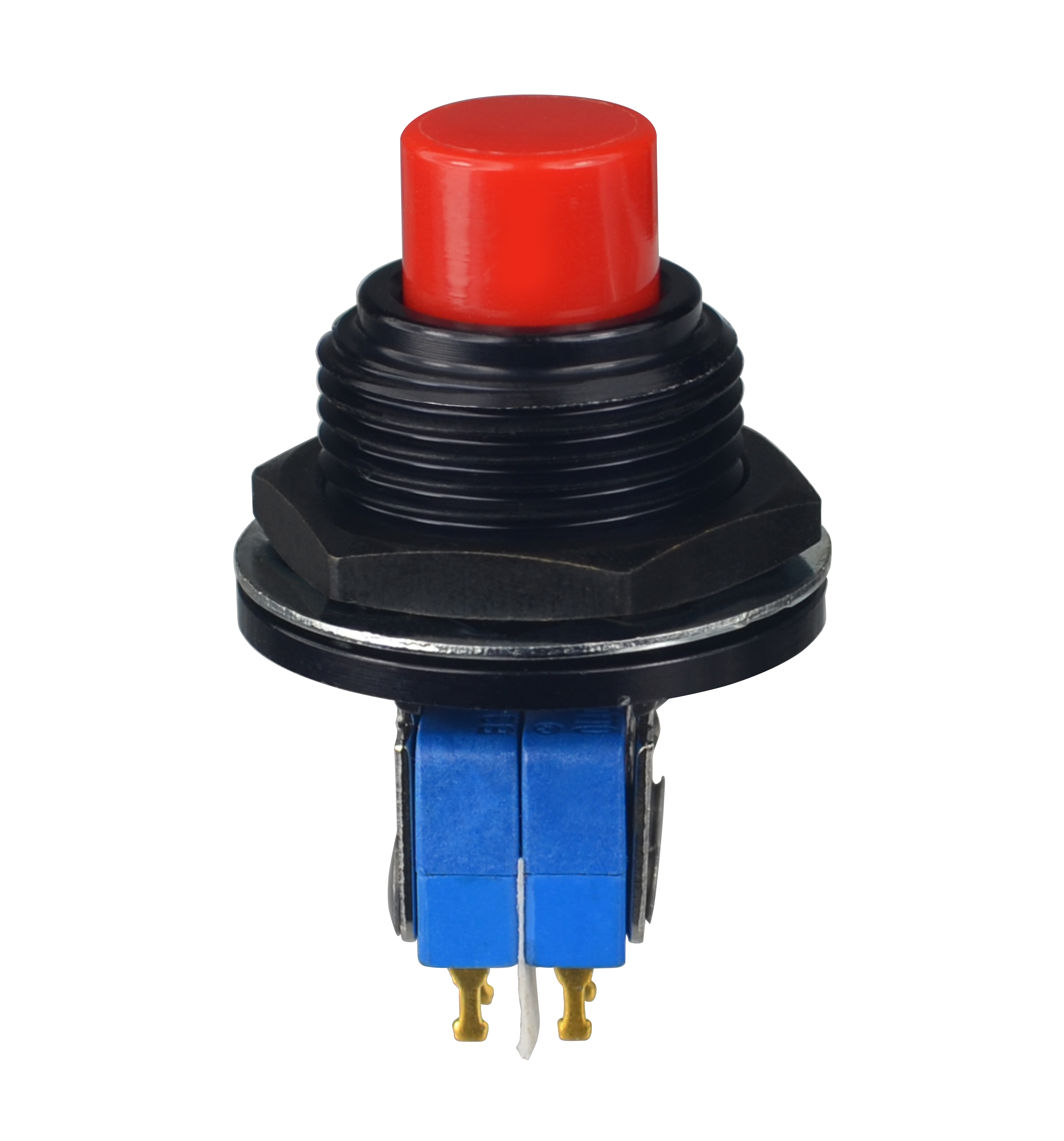

P4-634221
Specifications
Detailed Description
Introducing the P4-634221, a high-performance sealed push button switch designed for reliability in demanding environments. Part of the P4 series, this switch features a durable aluminum housing with a sleek black case and a vibrant red button for easy identification. With an IP6K4S rating, it offers superior protection against dust and water ingress. The DPDT 8 Terminal configuration ensures versatile functionality, while the gold-plated brass contacts guarantee excellent conductivity. Ideal for panel mounting, this switch has a maximum operating temperature of 85°C and a durability rating of 25,000 cycles, making it perfect for industrial applications where reliability is paramount. Upgrade your control systems with the P4-634221 and experience precision switching performance like never before.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
