| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P4-723113 |
| Series: | P4 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | DPDT 6 Terminal |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Orange |
| Actuator Length: | .25 in |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP4-723113 |
P4-723113
Specifications
Detailed Description

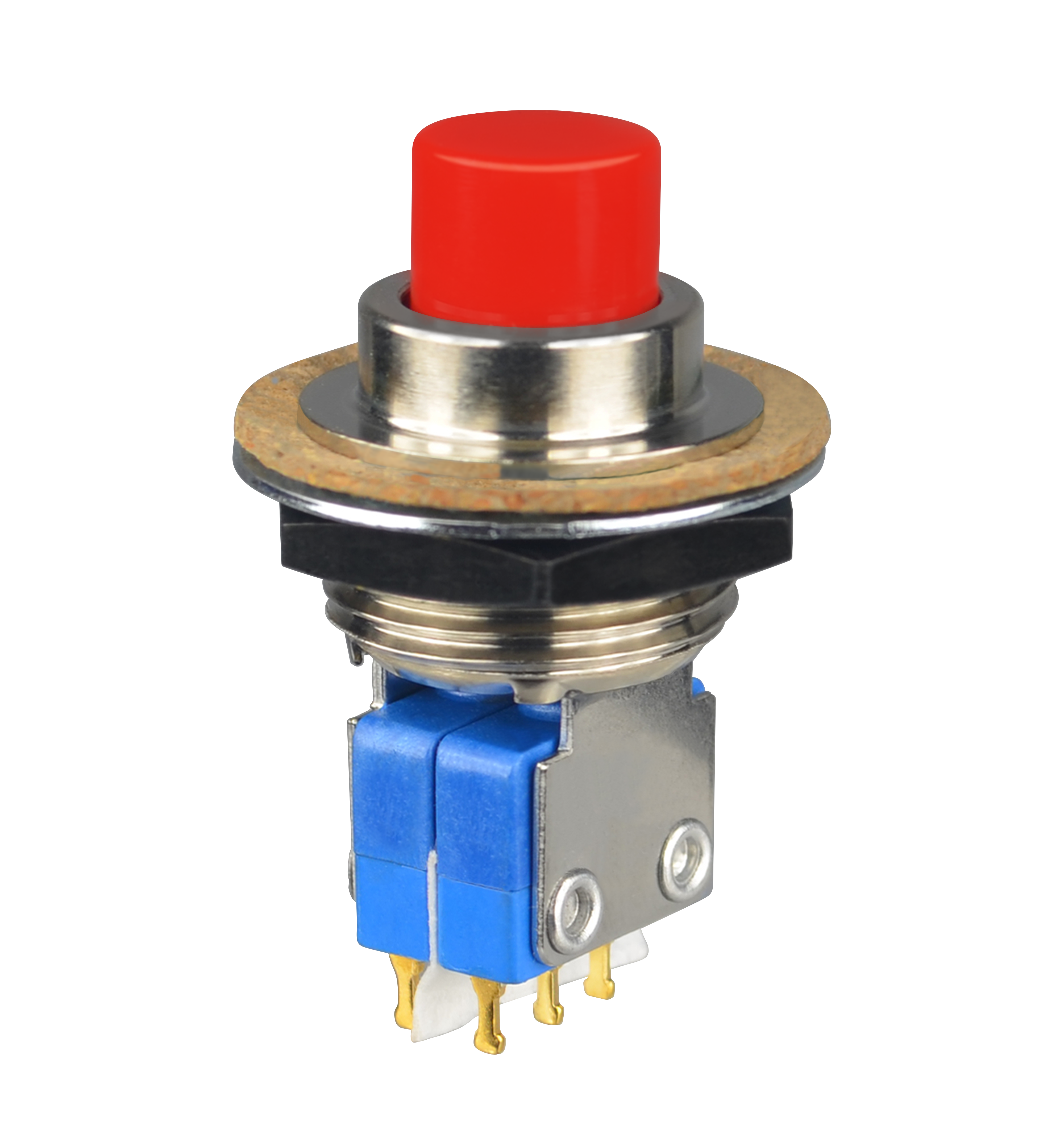

The P4-723113 Push Button Switch, part of the P4 series, boasts a durable design for reliable performance in demanding environments. With a sleek silver case and vibrant orange cap, it adds a pop of color to any panel. Featuring a flat round button actuator made of thermoplastic, this switch offers comfortable and efficient operation. Its IP6K4S sealing ensures protection against dust and water ingress, making it ideal for industrial applications. With a DPDT 6-terminal configuration and gold-plated brass contacts, it guarantees secure and low-resistance connections. Rated for 5A at 115VAC and 28VDC, it can handle various power loads. The P4-723113 is a versatile and robust push button switch suitable for a wide range of applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
