P5-414222

OTTP5_414222
Heilind Number:OTTP5-414222
Manufacturer:OTTO Controls
Manufacturer Number:P5-414222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

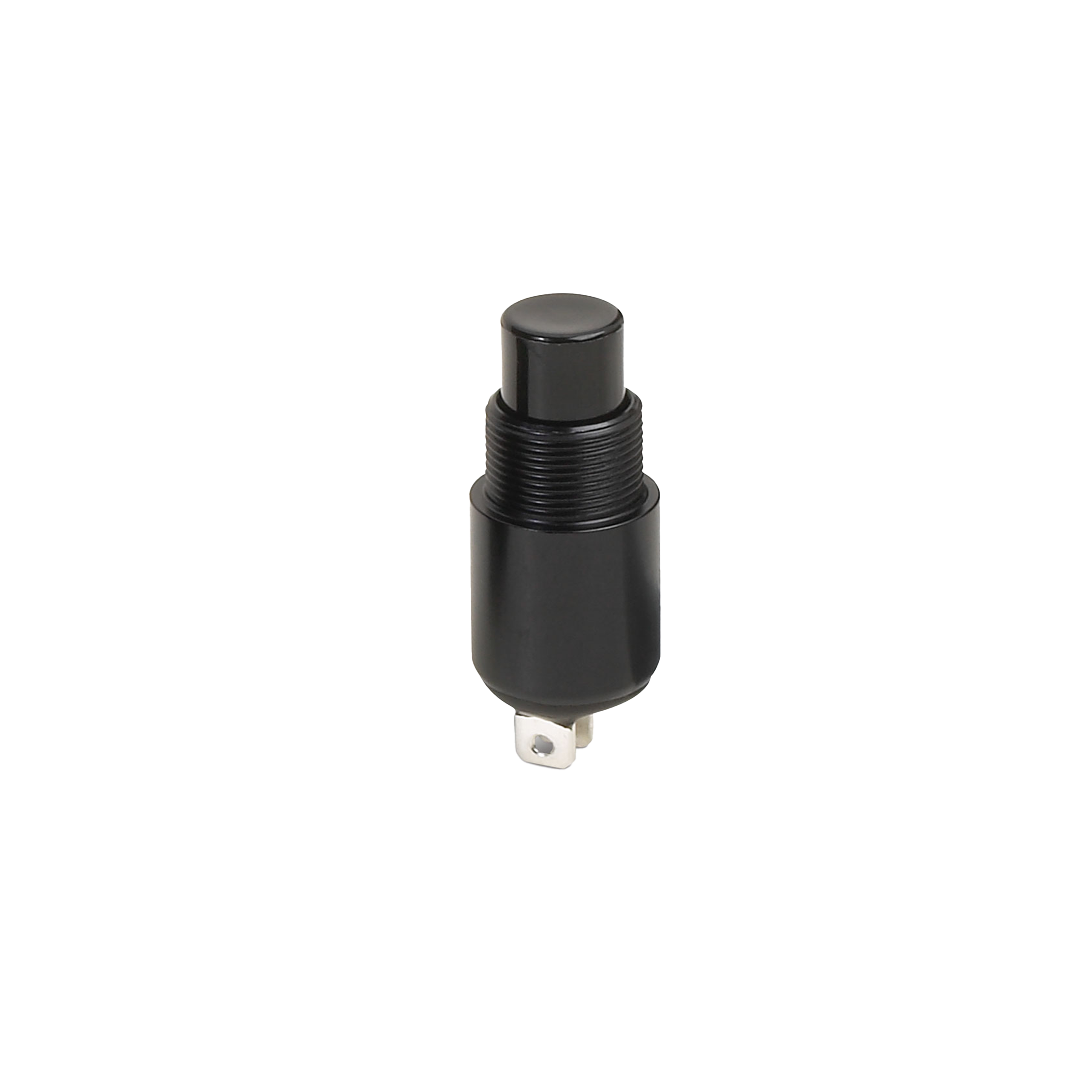

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-414222
Series:P5
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.32 in
Contact Plating:Gold
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):3 - 28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-414222

Detailed Description

Introducing the P5 series Pushbutton Switch, SKU P5-414222, designed for high reliability in demanding environments. This Mil Grade switch features a sealed construction, ensuring protection against dust and moisture. With an IP rating of Symbol 2, it offers reliable performance even in harsh conditions. The black aluminum housing and black cap exude durability, while the gold-plated brass contacts guarantee long-lasting, low resistance connections. Operating at voltages ranging from 3 to 28 VDC and currents of 10 to 100 mA, this switch is suitable for a variety of applications. The SPDT contact configuration and On-On switch function provide versatile control options. With a thermoplastic actuator and a 25,000 cycle durability rating, this pushbutton switch delivers consistent operation over its lifespan. Ideal for panel mounting with solder termination, it is perfect for use in aerospace, military, and industrial settings where reliability is paramount. Upgrade your systems with the P5 series Pushbutton Switch for dependable performance under pressure.
