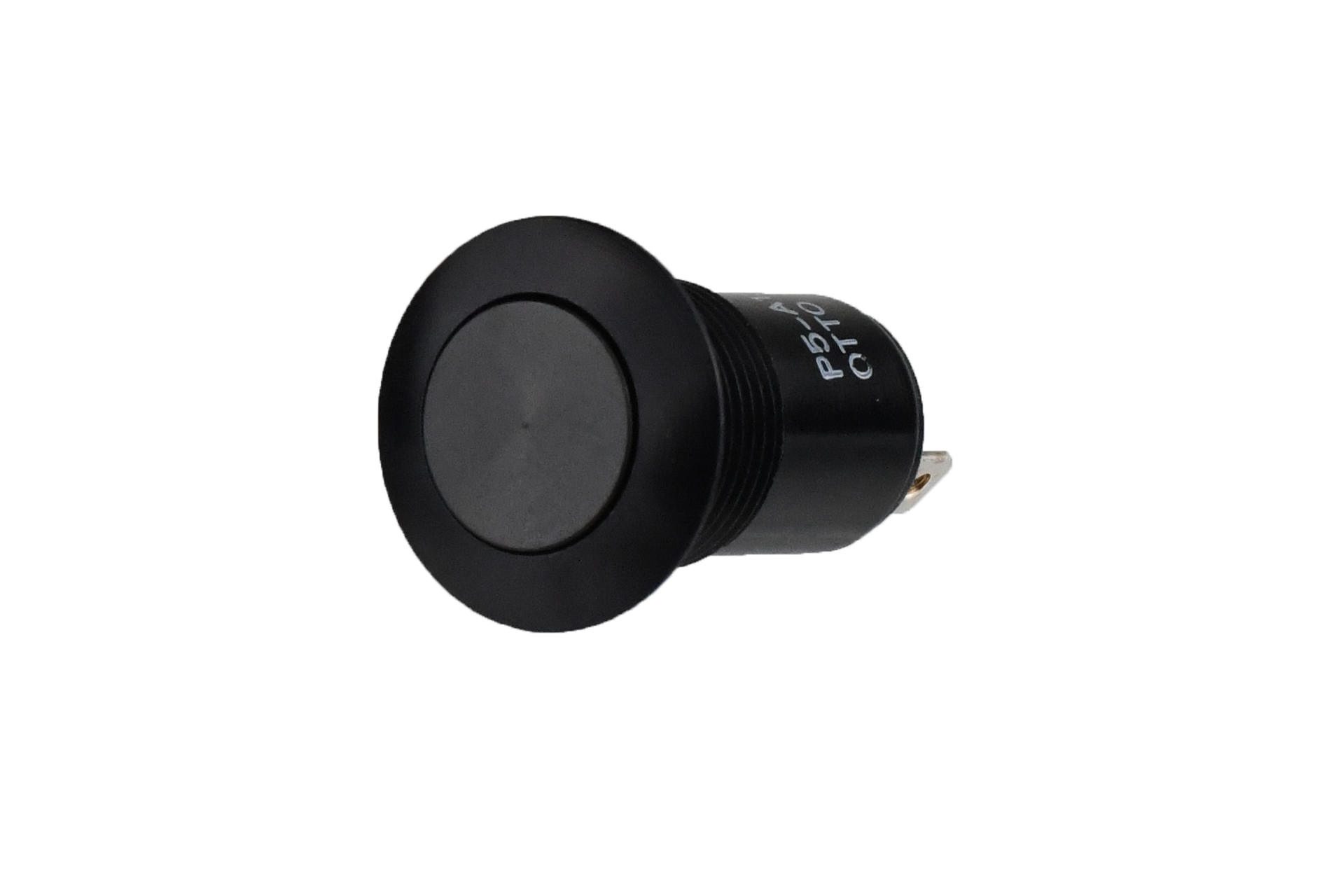

P5-A11313

OTTP5_A11313
Heilind Number:OTTP5-A11313
Manufacturer:OTTO Controls
Manufacturer Number:P5-A11313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Alternate Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-A11313
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.08 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-A11313

Detailed Description

Introducing the P5-A11313, a rugged and reliable pushbutton switch designed for demanding environments. With its durable aluminum housing and silver cap, this switch is not only visually sleek in silver but also IP6K4S rated for protection against dust and water ingress. The flat round button actuator ensures easy operation, while the sealed design guarantees long-lasting performance with a high durability rating of 25,000 cycles. Perfect for panel mounting, this switch features a SPDT contact configuration with a 5A current rating and 28VDC/115VAC voltage ratings, making it suitable for a wide range of applications. Whether you need a vandal-resistant solution or simply a dependable switch for your project, the P5-A11313 delivers on quality and functionality. Choose reliability with this Alternate Action pushbutton switch.
