| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A12225 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .16 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A12225 |

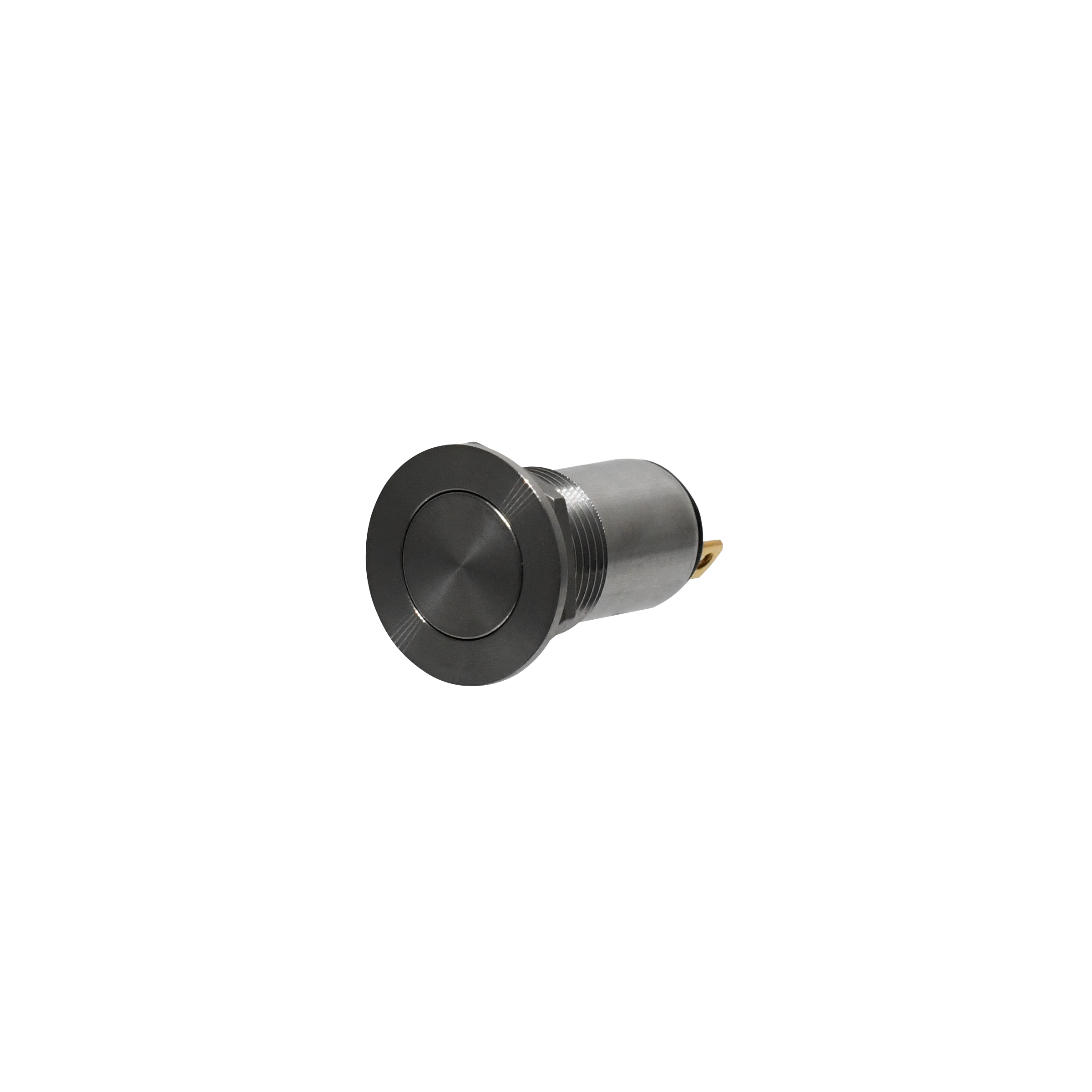

P5-A12225
Specifications
Detailed Description
Introducing the P5-A12225, a sleek and durable Push Button Switch designed for demanding environments. With a silver aluminum housing and a vandal-resistant construction, this switch is built to last. Featuring a sealed design and an IP6K8S rating, it ensures reliable performance even in harsh conditions. The Off-On switch function, along with a 5A current rating and SPST contact configuration, offers versatility for various applications. The flush round button actuator, made of aluminum, adds a touch of sophistication while providing a comfortable user experience. Ideal for panel mounting with screw termination, this switch guarantees easy installation. Whether in industrial settings or outdoor installations, the P5-A12225 is the perfect choice for high-quality, long-lasting performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
