| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A13225 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Flush) |
| Case Color: | Black |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .16 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A13225 |
P5-A13225
Specifications
Detailed Description

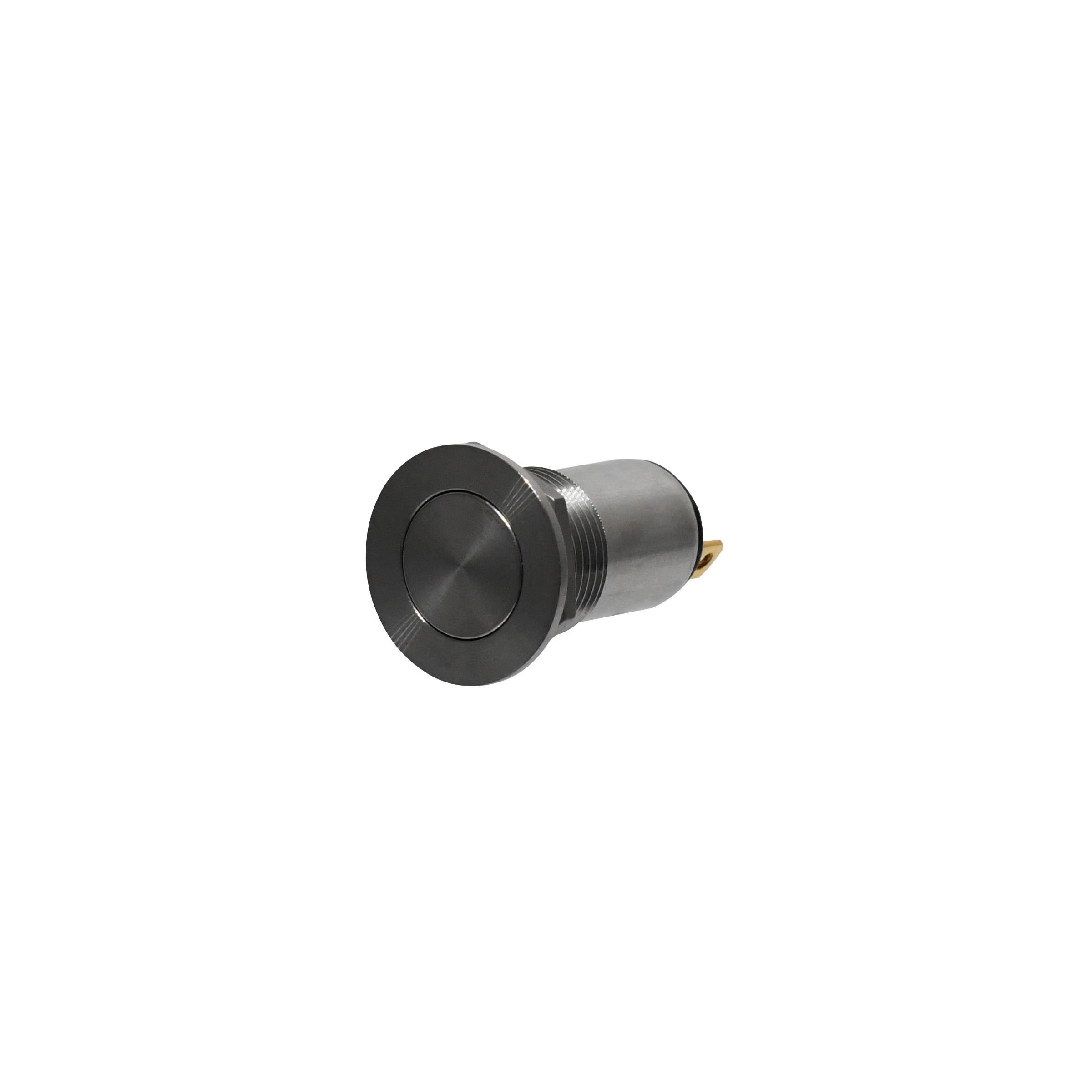

Introducing the Vandal Resistant, Sealed, Alternate Action Pushbutton Switch from our P5 series. With a durable aluminum housing and a sleek black case, this switch is designed for reliable performance in demanding environments. Featuring a flush button actuator with a round shape, it offers a smooth and responsive operation. The SPST contact configuration and gold-plated brass contacts ensure efficient conductivity. Rated for 25,000 cycles, this switch guarantees long-lasting use. Its IP6K8S rating and solder termination make it suitable for outdoor and industrial applications. Operating at temperatures ranging from -40°C to 85°C, it is built to withstand extreme conditions. Whether you need a dependable switch for your machinery or control panels, this P5 model with SKU P5-A13225 is the perfect choice.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
