P5-A14122

OTTP5_A14122
Heilind Number:OTTP5-A14122
Manufacturer:OTTO Controls
Manufacturer Number:P5-A14122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

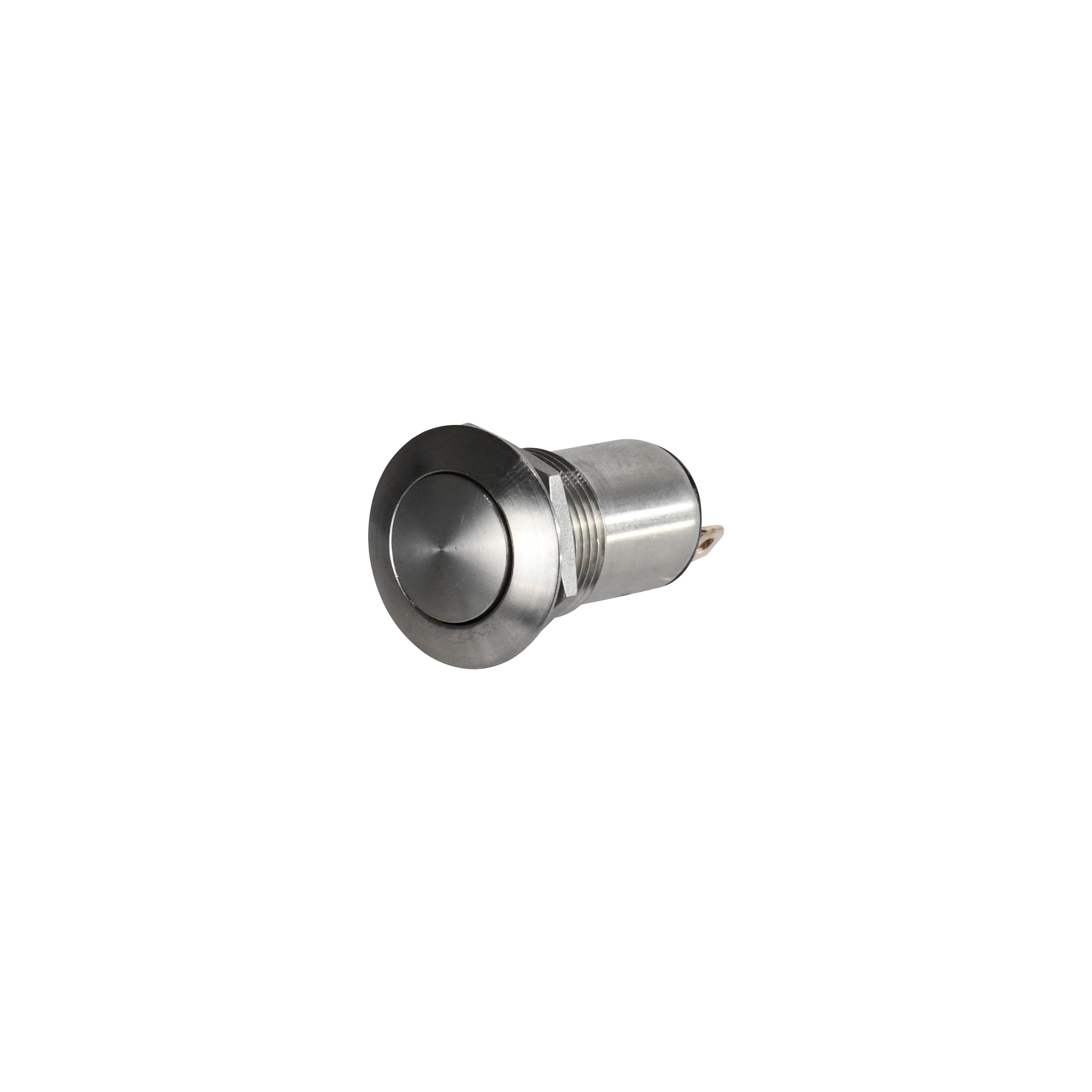

Vandal Resistant, Sealed, Alternate Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-A14122
Series:P5
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.24 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
Voltage Rating (AC):115 VAC
SKU:OTTP5-A14122

Detailed Description

The P5-A14122 Push Button Switch from the P5 series is a durable and reliable choice for industrial applications. Featuring a sleek silver cap and a rugged black aluminum case, this switch is both visually appealing and resistant to vandalism. With an IP6K8S rating, it offers excellent protection against dust and water ingress. The Off-On function and SPST contact configuration make it suitable for a variety of circuit control needs. Its high current rating of 5A and voltage ratings of 28VDC and 115VAC ensure versatile compatibility. The screw termination type allows for secure and easy installation. Designed for longevity, this switch has a durability rating of 25,000 cycles and operates smoothly in temperatures ranging from -40°C to 85°C. Trust in the P5-A14122 for dependable performance in demanding environments.
