P5-A31222

OTTP5_A31222
Heilind Number:OTTP5-A31222
Manufacturer:OTTO Controls
Manufacturer Number:P5-A31222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

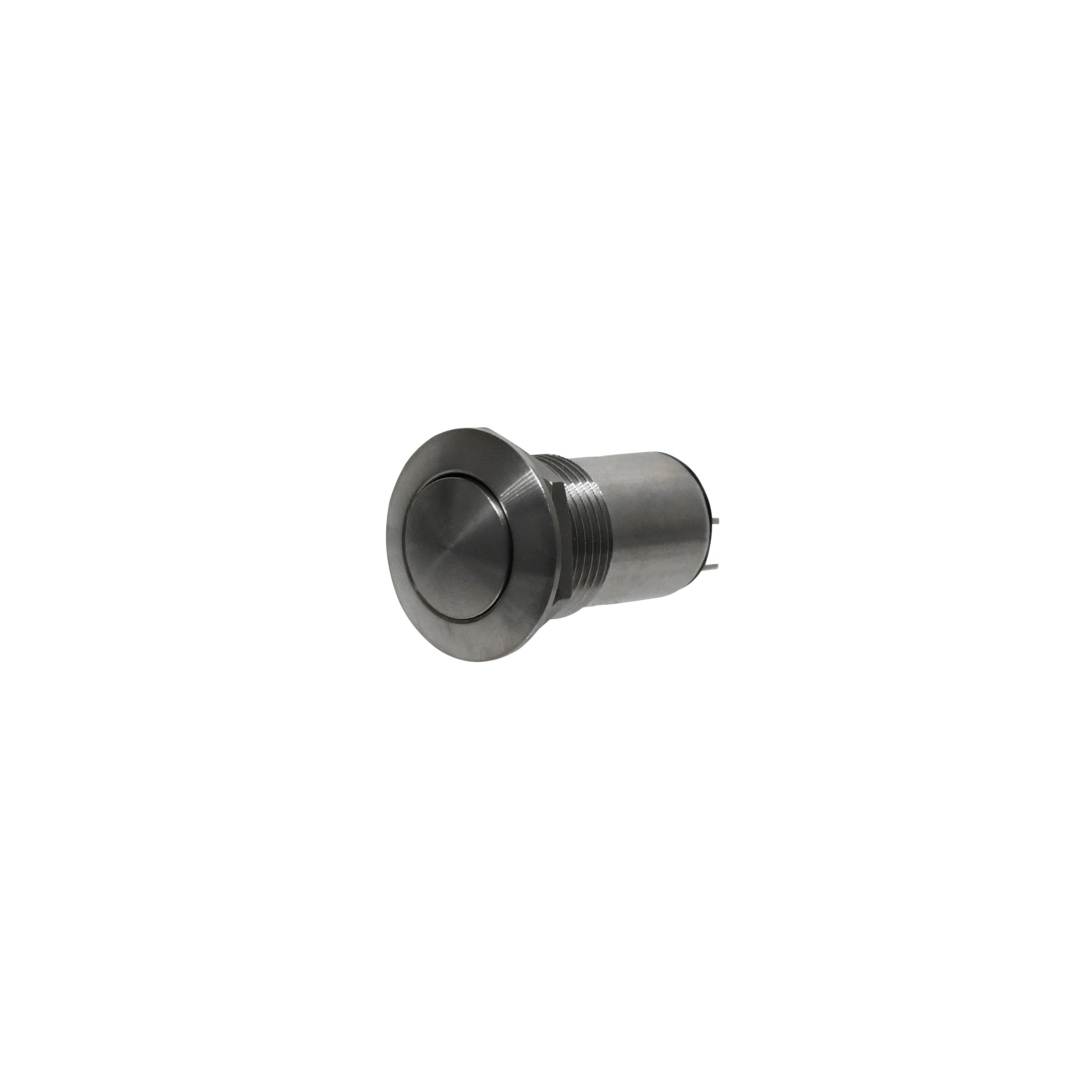

Vandal Resistant, Sealed, Alternate Action, Aluminum, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-A31222
Series:P5
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.24 in
Contact Plating:Gold
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
Voltage Rating (AC):115 VAC
SKU:OTTP5-A31222

Detailed Description

The P5-A31222 Vandal Resistant Sealed Pushbutton Switch is the epitome of durable and reliable performance. With its Silver cap and case, this switch is not only visually sleek but also highly functional, boasting an IP6K8S rating for superior protection against dust and water ingress. Featuring a Button (Curved) actuator made of Aluminum, it offers a smooth and ergonomic user experience. The Off-On switch function, alongside the SPST contact configuration, ensures precise control. Gold-plated Brass contacts and a 5A current rating guarantee efficient conductivity. Suitable for panel mounting via solder termination, this switch is ideal for various industrial applications. With a durability rating of 25,000 cycles and operating temperatures ranging from -40°C to 85°C, it excels in even the harshest environments. The P5 series sets a new standard for performance and longevity in pushbutton switches.
