| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A32222 |
| Series: | P5 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Curved) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .24 in |
| Contact Plating: | Gold |
| Switch Function: | Off-On |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Voltage Rating (AC): | 115 VAC |
| SKU: | OTTP5-A32222 |

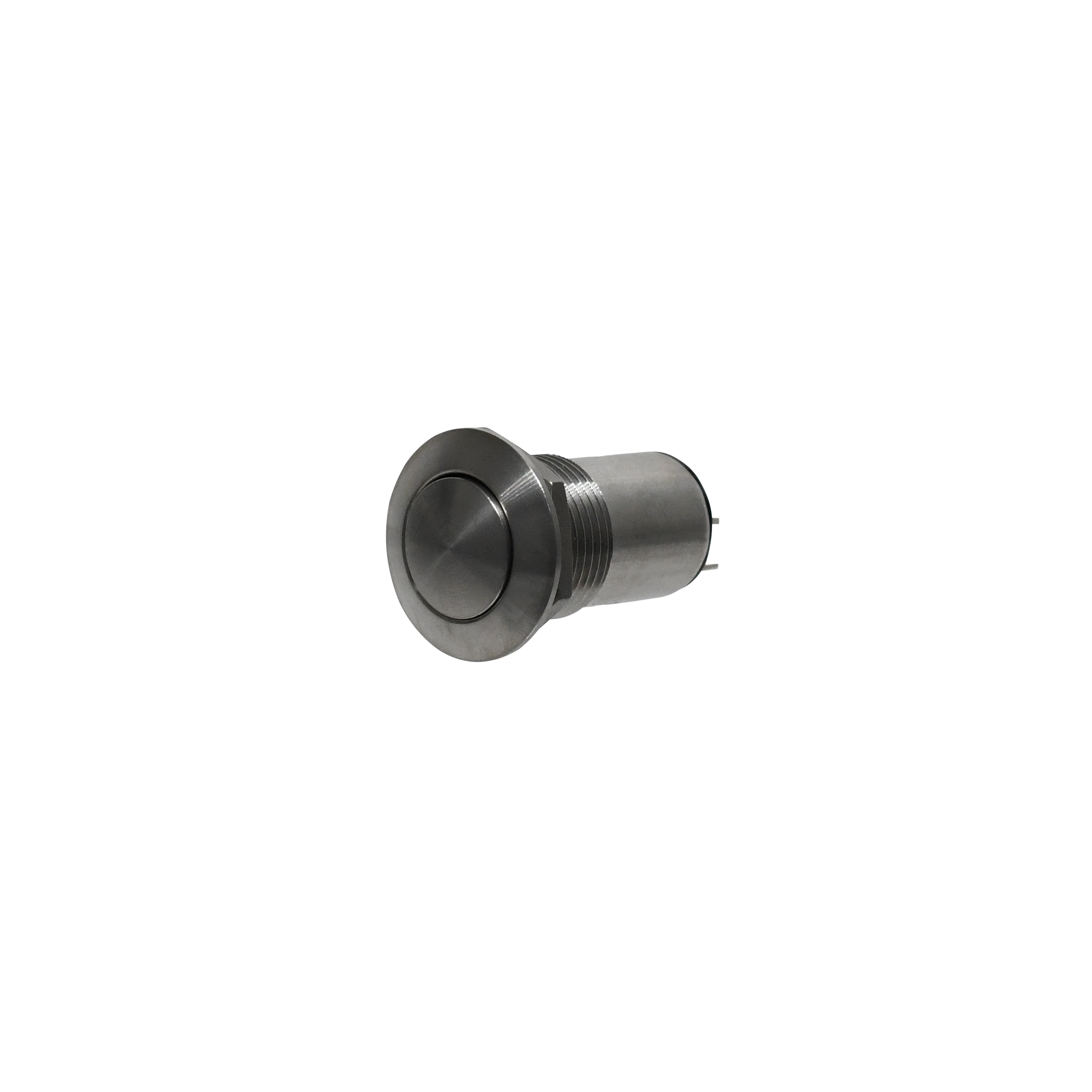

P5-A32222
Specifications
Detailed Description
Introducing the Vandal Resistant, Sealed, Alternate Action Aluminum Pushbutton Switch from our P5 series. This durable switch, with a silver cap and case, is designed to withstand the harshest environments with an IP6K8S rating. Featuring a round, curved button actuator made of aluminum, it ensures reliable performance. With a contact configuration of SPST and a current rating of 5A, it guarantees efficient power control. Ideal for panel mounting, this switch is perfect for applications requiring a high level of durability and security. It operates in temperatures ranging from -40°C to 85°C and is suitable for both AC and DC voltage inputs, with ratings of 115VAC and 28VDC respectively. Trust in the quality and resilience of this sealed pushbutton switch for your industrial or commercial needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
