| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A51124 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .14 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A51124 |
P5-A51124
Specifications
Detailed Description

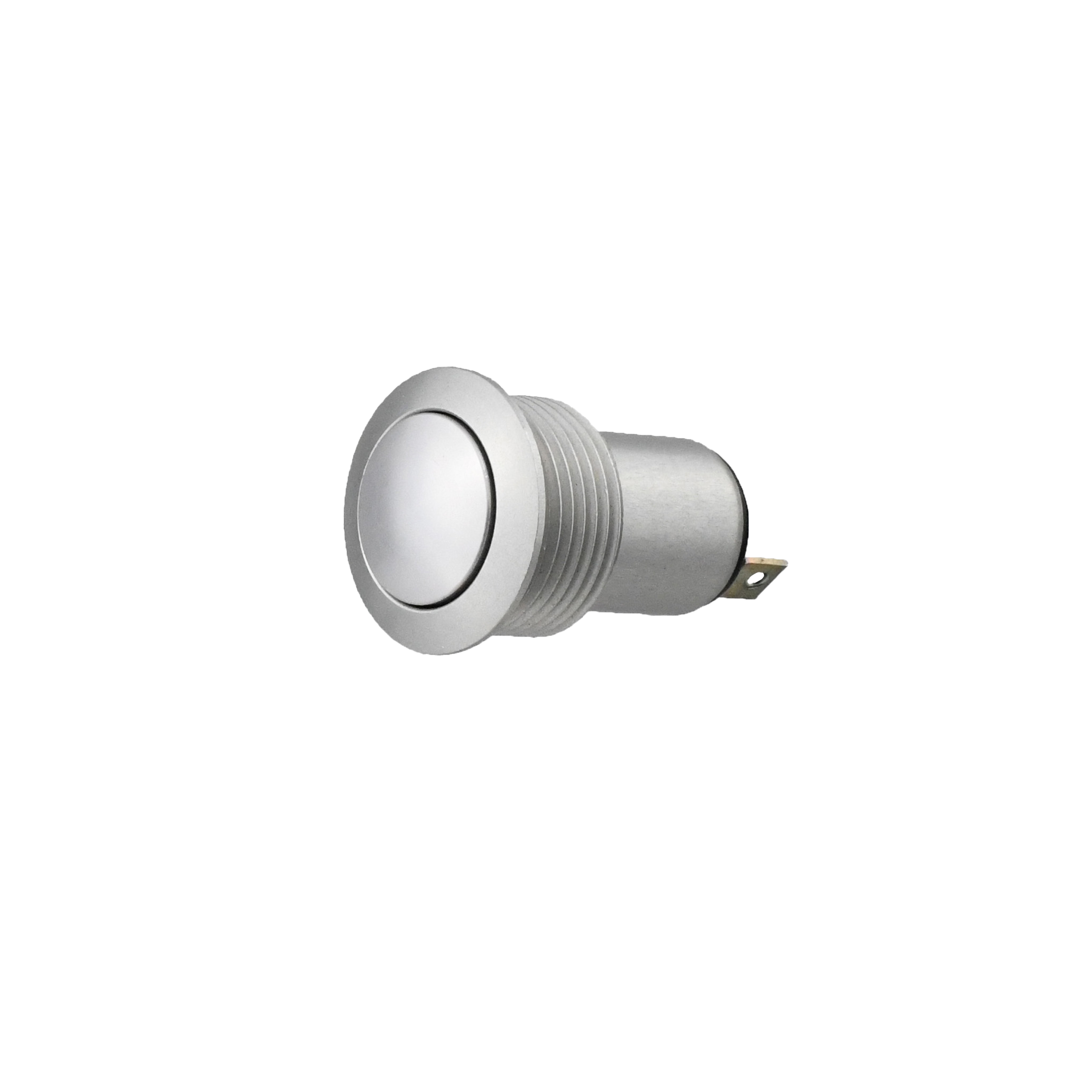

Introducing the Vandal Resistant Sealed Alternate Action Aluminum Pushbutton Switch, part of the P5 series. Designed for durability with a 25,000 cycle rating, this switch is perfect for high-demand environments. The sleek silver cap and case, along with a curved round button actuator, offer both style and functionality. Featuring a 5A current rating and SPST contact configuration, it guarantees reliable performance. With a waterproof IP6K8S rating and operating temperatures ranging from -40°C to 85°C, it's suitable for diverse applications. The solder termination and panel mount style ensure easy installation. Ideal for industrial, commercial, or automotive use, this switch is a dependable choice for your control needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
