| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A51314 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .14 in |
| Switch Function: | On-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A51314 |

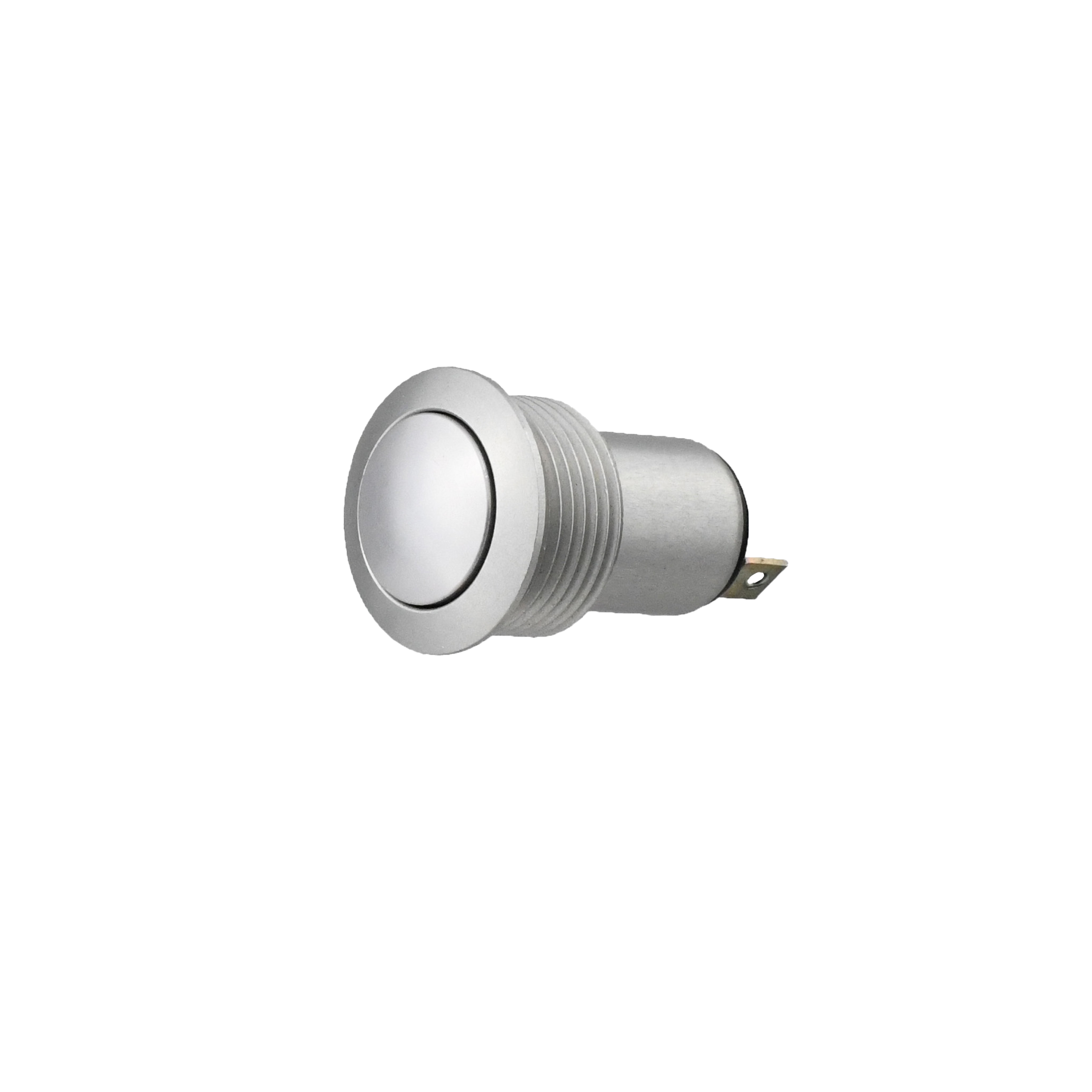

P5-A51314
Specifications
Detailed Description
Introducing the P5A51314, a rugged and reliable vandal-resistant pushbutton switch designed for demanding environments. With its durable aluminum housing and sealed construction, this switch ensures long-lasting performance even in harsh conditions. Featuring a sleek silver cap and a curved round button actuator, it offers a tactile and ergonomic user experience. The SPDT contact configuration, along with a 5A current rating, guarantees versatile functionality. Ideal for panel mounting, this switch is perfect for industrial machinery, automotive applications, and outdoor equipment. With an IP6K4S rating for dust and water resistance, and a wide operating temperature range from -40°C to 85°C, it's built to withstand the elements. Trust in the P5A51314 for dependable operation in any situation.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
