| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A53325 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Flush) |
| Case Color: | Black |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .05 in |
| Switch Function: | On-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A53325 |
P5-A53325
Specifications
Detailed Description

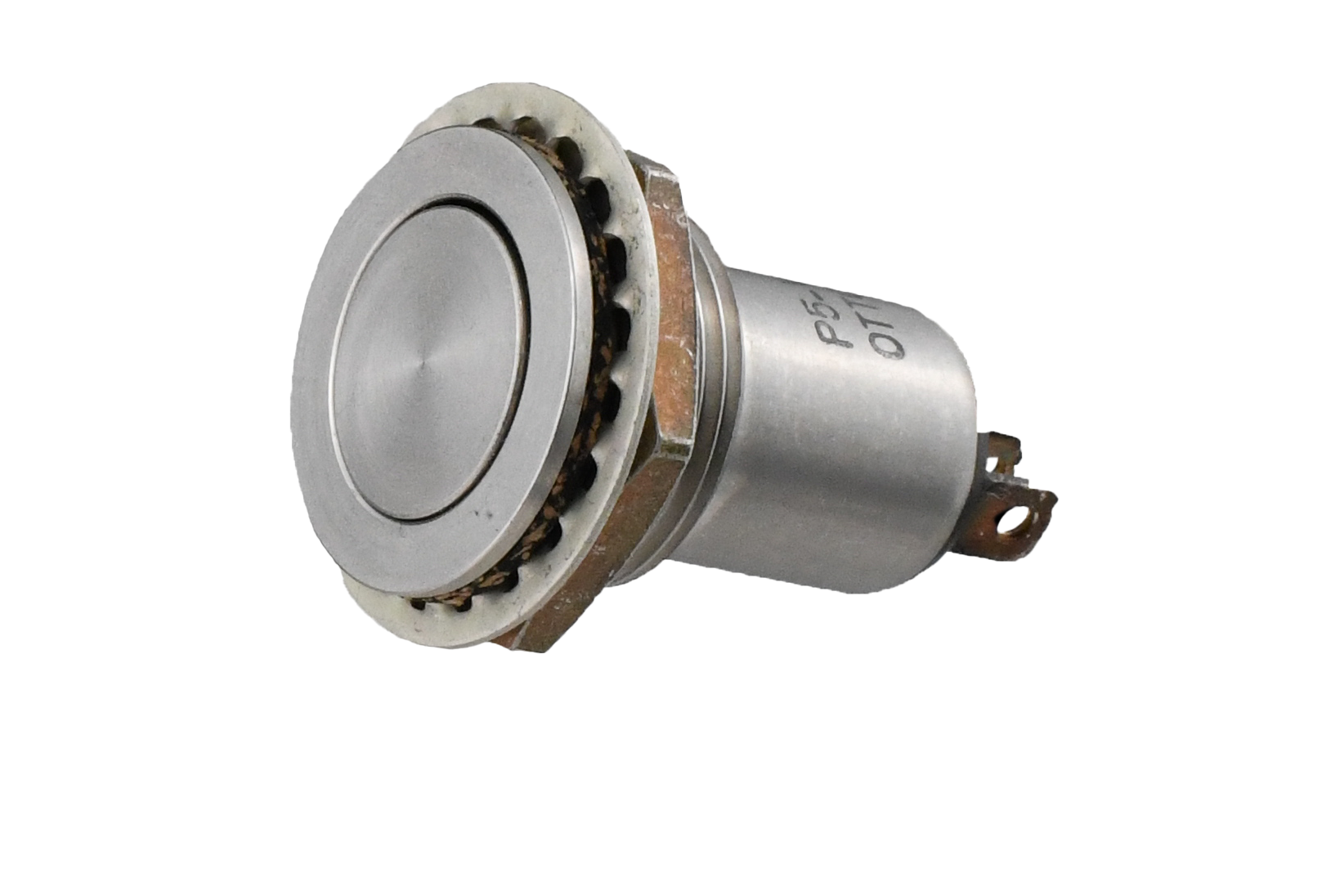

The Vandal Resistant, Sealed, Alternate Action, Aluminum Pushbutton Switch P5A53325 is a durable and reliable component designed for demanding environments. With a sleek silver cap and black housing, it offers a high level of protection with an IP6K8S rating. The SPDT switch function, along with a 5A current rating and a voltage rating of 28VDC, ensures versatile performance. Its flush button actuator, made of aluminum, provides a responsive touch. Featuring solder termination and a contact plating of silver, this switch guarantees secure connectivity. Ideal for panel mounting, it operates efficiently in temperatures ranging from -40°C to 85°C. With a durability rating of 25,000 cycles, this product is a top choice for industrial applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
