| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A71124 |
| Series: | P5 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Curved) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .14 in |
| Contact Plating: | Silver |
| Switch Function: | Off-On |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Voltage Rating (AC): | 115 VAC |
| SKU: | OTTP5-A71124 |
P5-A71124
Specifications
Detailed Description

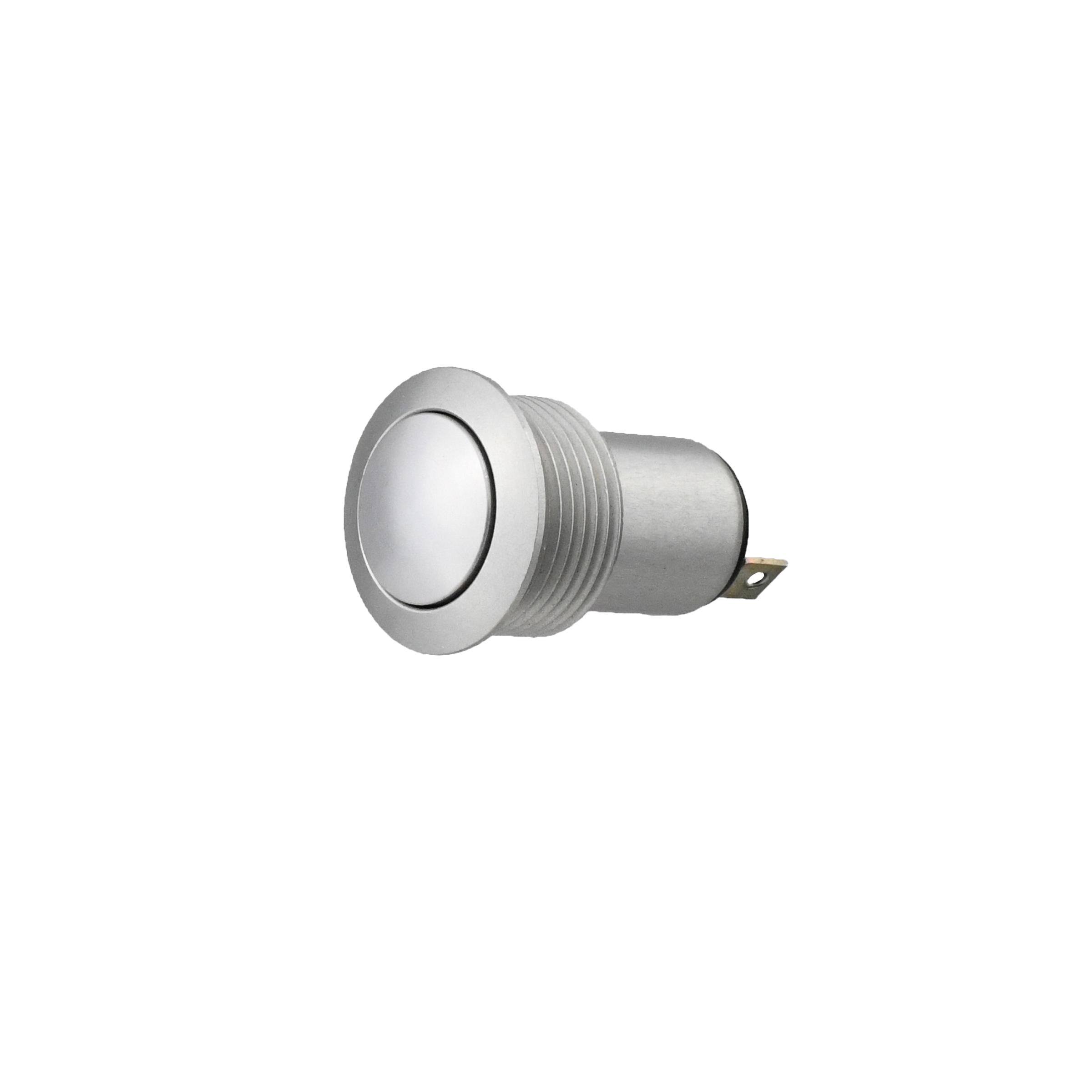

Introducing the Vandal Resistant, Sealed, Alternate Action Aluminum Pushbutton Switch, part of the P5 series. Featuring a durable construction with a Silver cap and IP6K8S rating, this panel mount switch guarantees reliability in harsh environments. The Off-On switch function, along with a 5A current rating and SPST contact configuration, ensures efficient performance. Crafted with Brass contacts and Aluminum housing, it offers longevity with a durability rating of 25,000 cycles. With a sleek Silver case and round, curved button actuator, this switch combines style and functionality. Ideal for applications requiring a high level of protection and control, the P5A71124 is the perfect choice for demanding industrial settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
