| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A71125 |
| Series: | P5 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .08 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-A71125 |

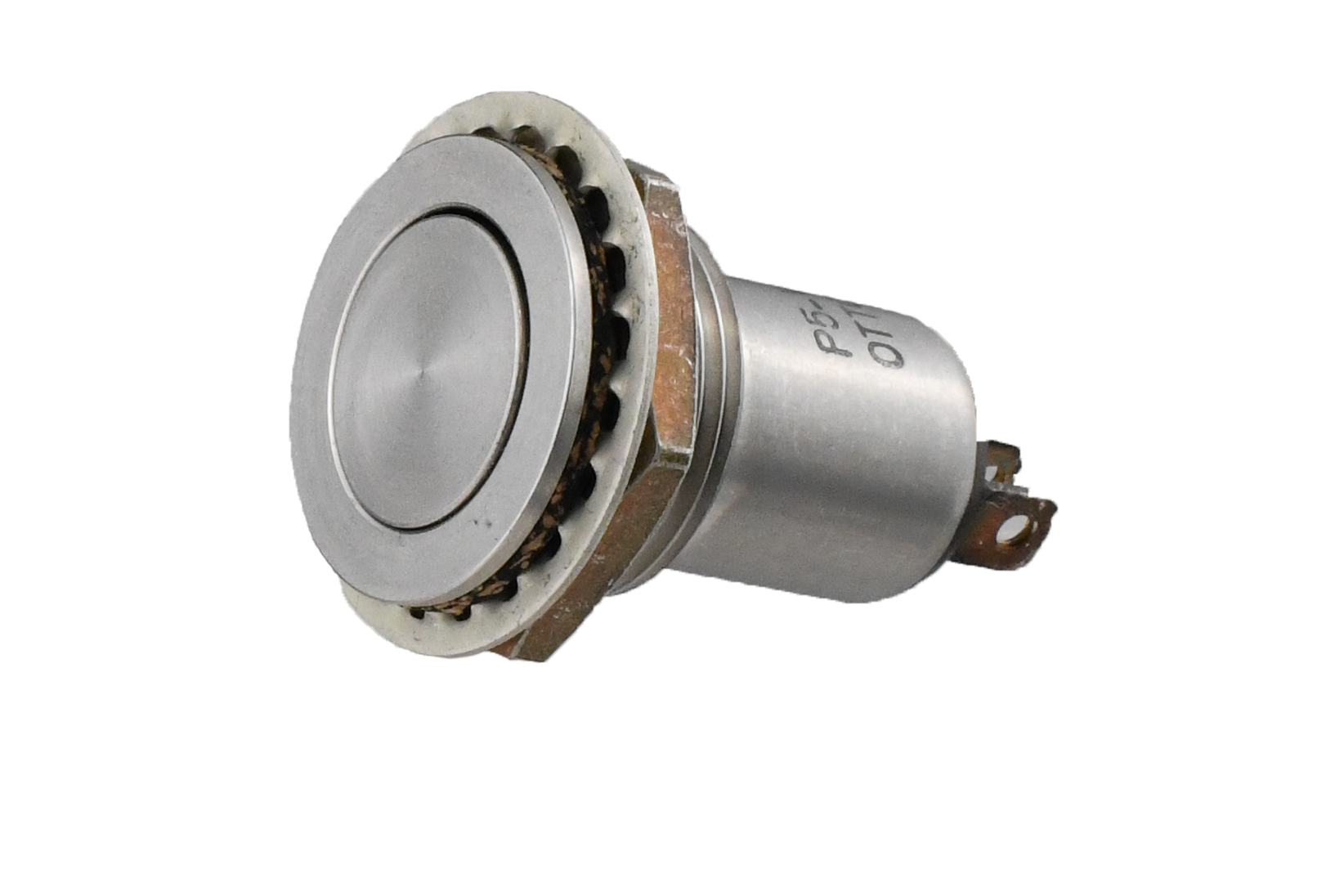

P5-A71125
Specifications
Detailed Description
The P5-A71125 Push Button Switch is a rugged and reliable solution for demanding environments. Featuring a Vandal Resistant design with a durable Aluminum housing and Silver cap, this switch is built to withstand heavy use. With an IP6K8S rating, it offers excellent protection against dust and water ingress, making it ideal for outdoor or industrial applications. The Off-On switch function and SPST contact configuration provide simple and efficient operation. Panel mountable with solder termination, installation is straightforward. The Round Flush Button actuator, made of Aluminum, ensures smooth and comfortable activation. With a high durability rating of 25,000 cycles and a wide operating temperature range from -40°C to 85°C, this switch guarantees long-lasting performance even in harsh conditions. Trust the P5-A71125 for your critical control needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
