| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-A73113 |
| Series: | P5 |
| Cap Color: | Silver |
| IP Rating: | IP6K4S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | Off-On |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Voltage Rating (AC): | 115 VAC |
| SKU: | OTTP5-A73113 |
P5-A73113
Specifications
Detailed Description

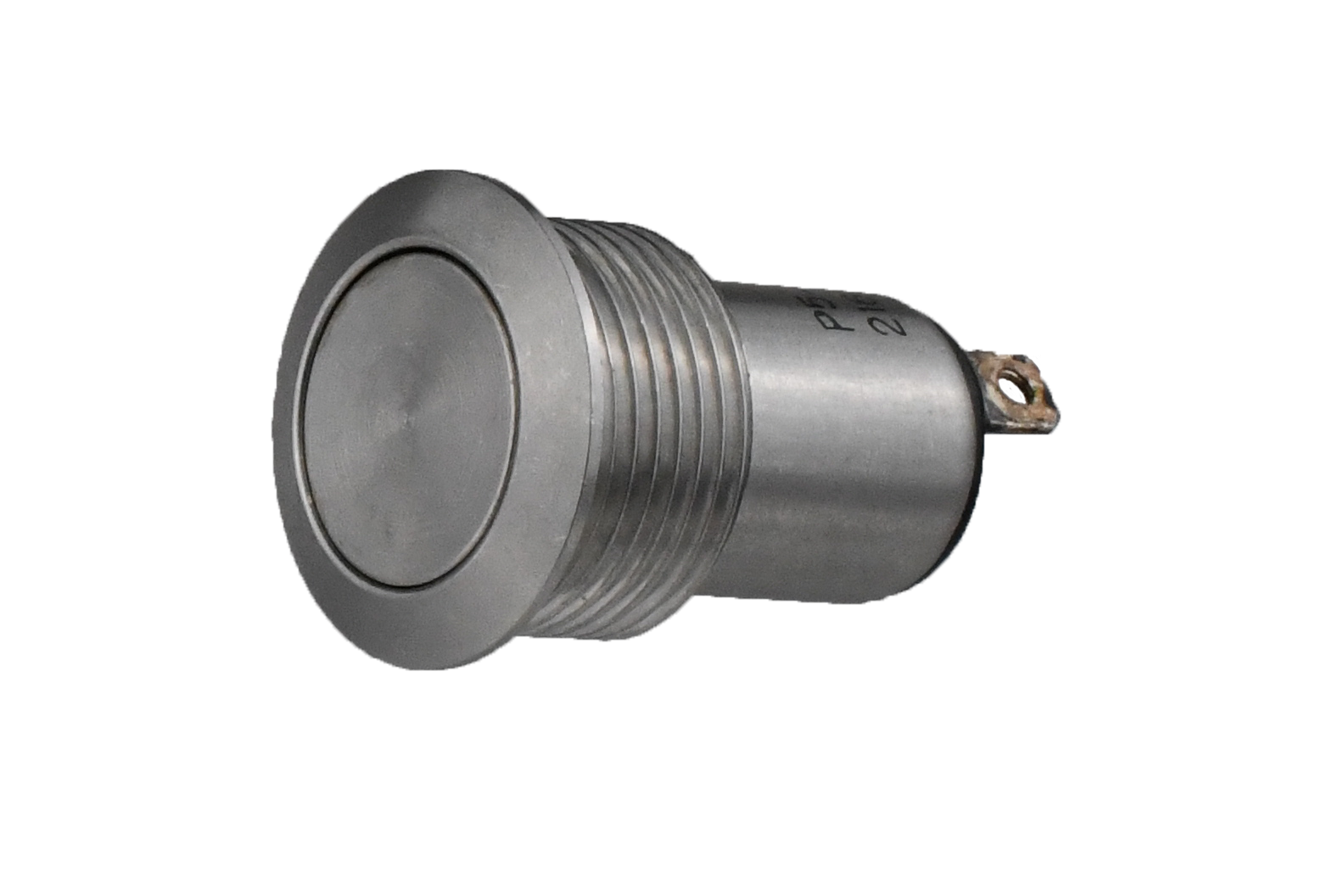

Introducing the Vandal Resistant Sealed Pushbutton Switch, a durable and reliable solution for your panel mount activation needs. Featuring a sleek silver aluminum casing and a flat round silver button actuator, this switch is not only aesthetically pleasing but also built to withstand tough environments. With an IP6K4S rating, it offers excellent protection against dust and water ingress. The Off-On switch function, SPST contact configuration, and 5A current rating make it suitable for various applications. With a high durability rating of 25,000 cycles, you can count on its performance for the long haul. Whether used in industrial machinery or outdoor settings, this Pushbutton Switch guarantees smooth and consistent operation. Upgrade to the P5A73113 for quality you can trust.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
