| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V11124 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .14 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V11124 |

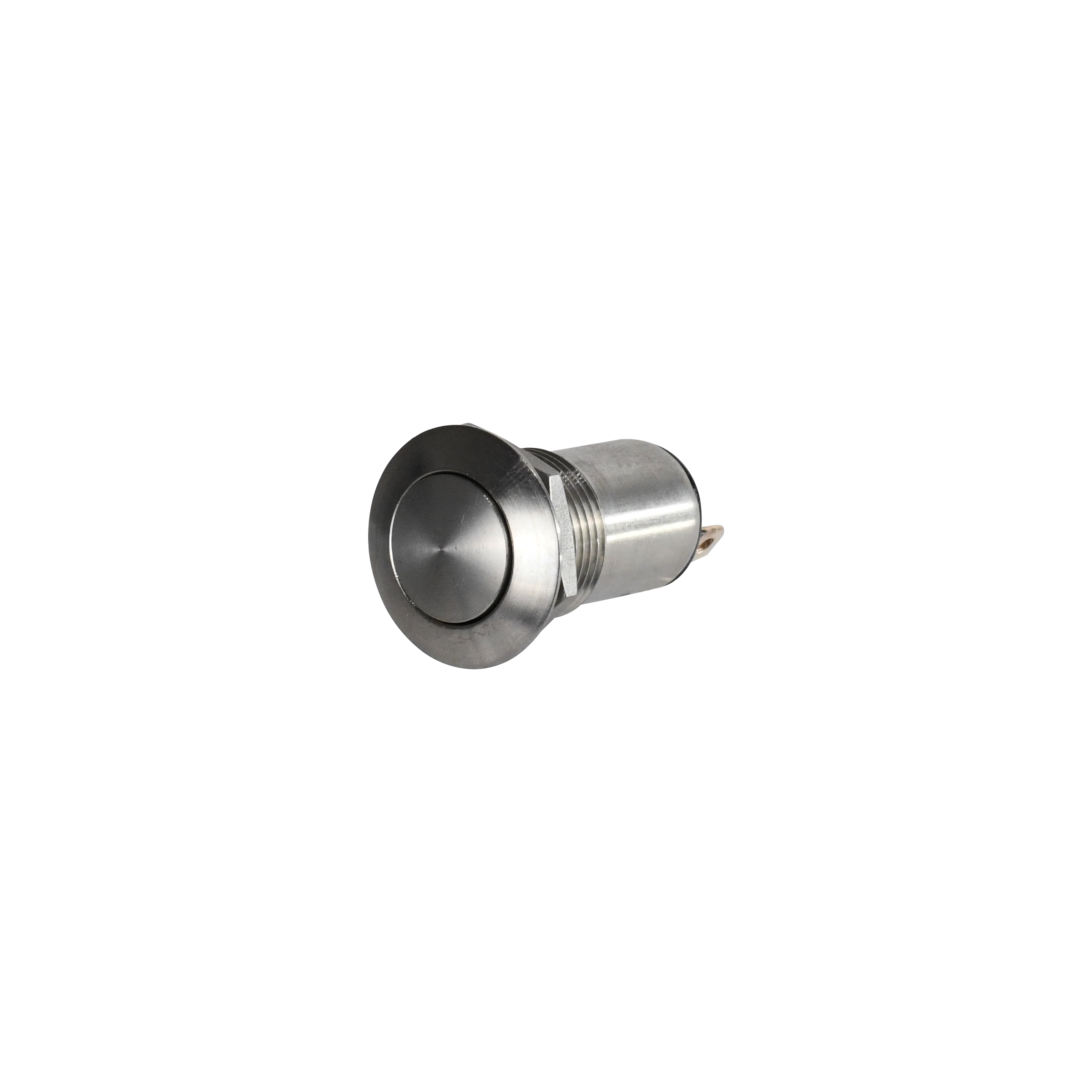

P5-V11124
Specifications
Detailed Description
Introducing the P5-V11124, a rugged and reliable Vandal Resistant Pushbutton Switch perfect for demanding environments. This sleek panel-mount switch features a durable stainless steel housing in a striking silver finish, ensuring longevity and resistance to tampering. With an IP6K8S rating, it's sealed against dust and water ingress, making it ideal for outdoor or industrial use. The Off-On switch function, along with a 5A current rating, guarantees efficient performance. Crafted with a curved round button actuator made of stainless steel, it offers tactile feedback and precise control. Operating at temperatures ranging from -40°C to 85°C, and with a high durability rating of 25,000 cycles, this switch is built to withstand harsh conditions. Whether in transportation, industrial machinery, or security applications, the P5-V series sets a new standard for quality and reliability.
