| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V12313 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .08 in |
| Switch Function: | On-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V12313 |

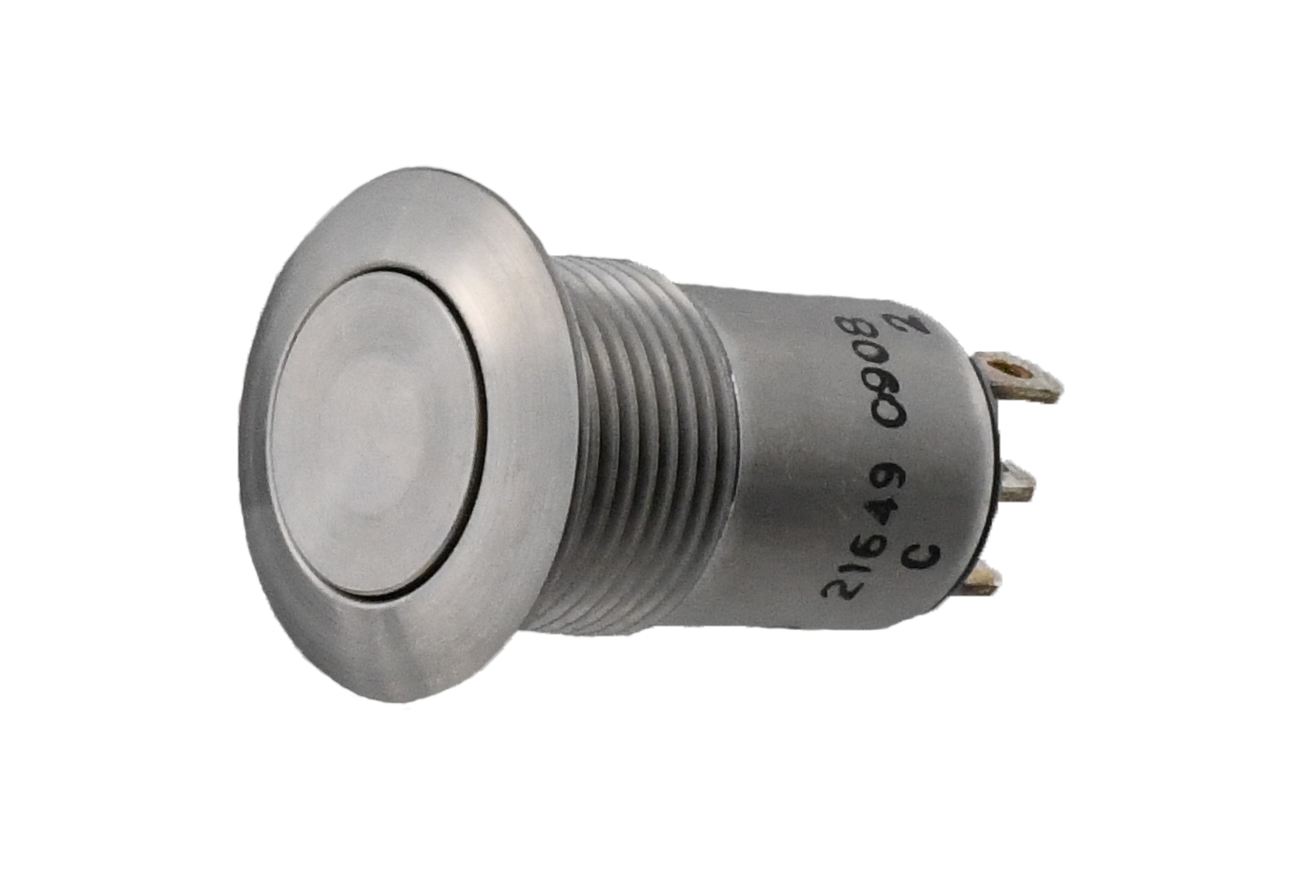

P5-V12313
Specifications
Detailed Description
Introducing the P5-V12313, a silver-colored Vandal Resistant Pushbutton Switch from our P5-V series. With an IP6K4S rating, this switch is built to withstand tough environments. Featuring a non-illuminated design and a durable stainless steel housing, it ensures reliable performance. The flat round button actuator with a 0.08-inch length and screw termination offers easy installation. Operating at 115 VAC and 28 VDC, with a current rating of 5A, it's suitable for various applications. The SPDT contact configuration and brass contact material guarantee efficient conductivity. With a switch function of On-On and a durability rating of 25,000 cycles, it's a dependable choice for demanding tasks. Whether for industrial or commercial use, this sealed pushbutton switch delivers quality and longevity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
