| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V31225 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .05 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V31225 |

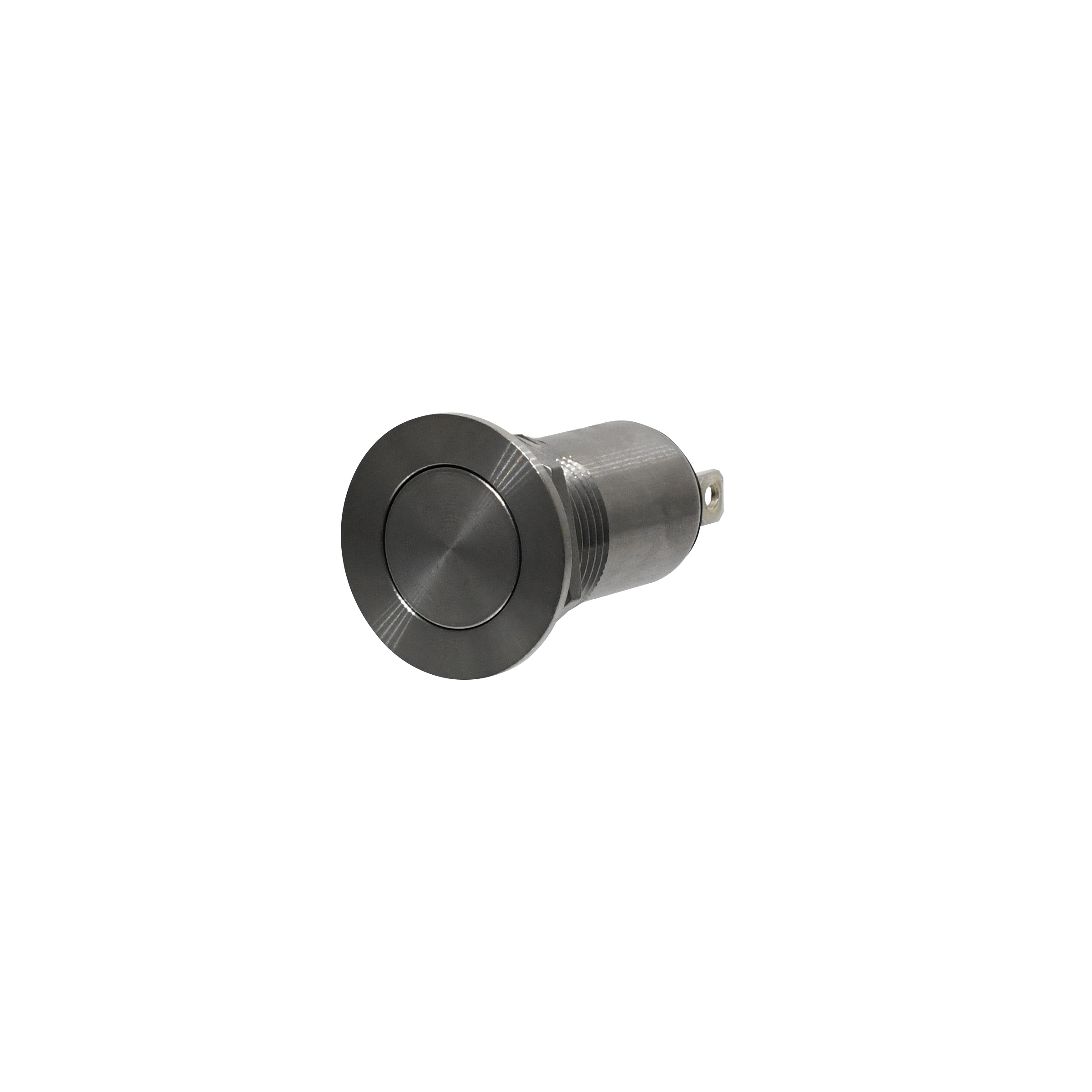

P5-V31225
Specifications
Detailed Description
Experience durability and reliability with our Vandal Resistant Pushbutton Switch, part of the P5-V series. Featuring a sleek silver design, this switch is perfect for industrial applications. With an IP6K8S rating, it offers exceptional protection against dust and water ingress, ensuring long-lasting performance even in harsh environments. The stainless steel housing and brass contact material guarantee robustness and efficient conductivity. Operating at temperatures ranging from -40°C to 85°C, it's suitable for a wide range of settings. This switch, with a 5A current rating and SPST contact configuration, is ideal for panel mounting and is sealed for added protection. Rest assured, with a durability rating of 25,000 cycles, this switch is built to last. Whether for machinery, control panels, or outdoor equipment, trust in the reliability of our Vandal Resistant Pushbutton Switch.
