| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V32122 |
| Series: | P5-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Curved) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .26 in |
| Contact Plating: | Silver |
| Switch Function: | Off-On |
| Contact Material: | Brass |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTP5-V32122 |

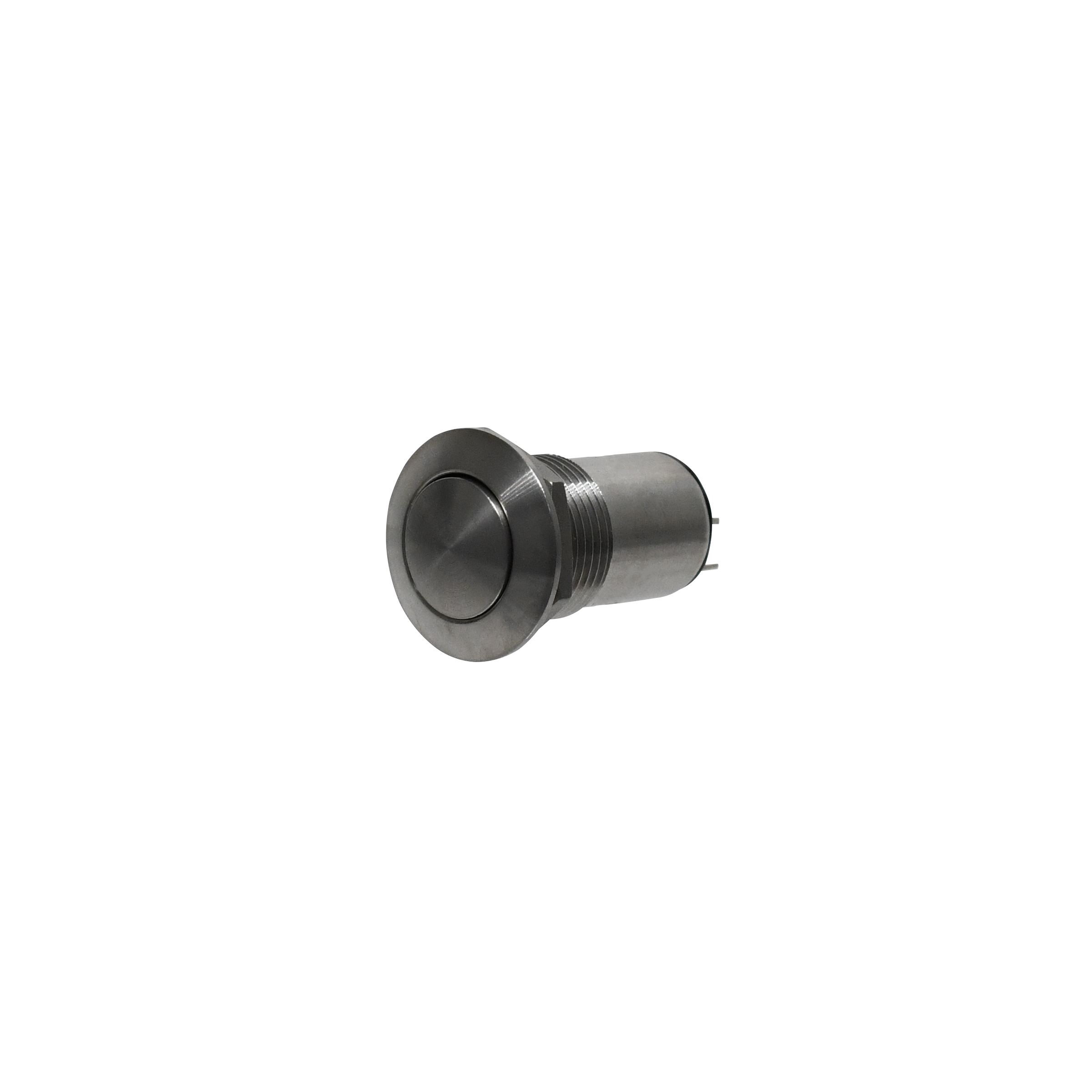

P5-V32122
Specifications
Detailed Description
Introducing our Vandal Resistant Pushbutton Switch, the ultimate solution for demanding environments where durability and security are paramount. This industrial-grade switch, part of our P5-V series, features a sleek silver design with a button actuator, perfect for panel mounting. With an IP6K8S rating, it ensures reliable performance even in harsh conditions. The stainless steel housing and actuator guarantee long-lasting quality, supported by a high durability rating of 25,000 cycles. Operating at temperatures ranging from -40 °C to 85 °C, and with a current rating of 5 A, this switch is suitable for a wide range of applications. Its SPST contact configuration and Off-On switch function offer simple and efficient control. Whether in automotive, aerospace, or industrial settings, trust the P5-V32122 for rugged, dependable operation.
