| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V41322 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .26 in |
| Switch Function: | On-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V41322 |
P5-V41322
Specifications
Detailed Description

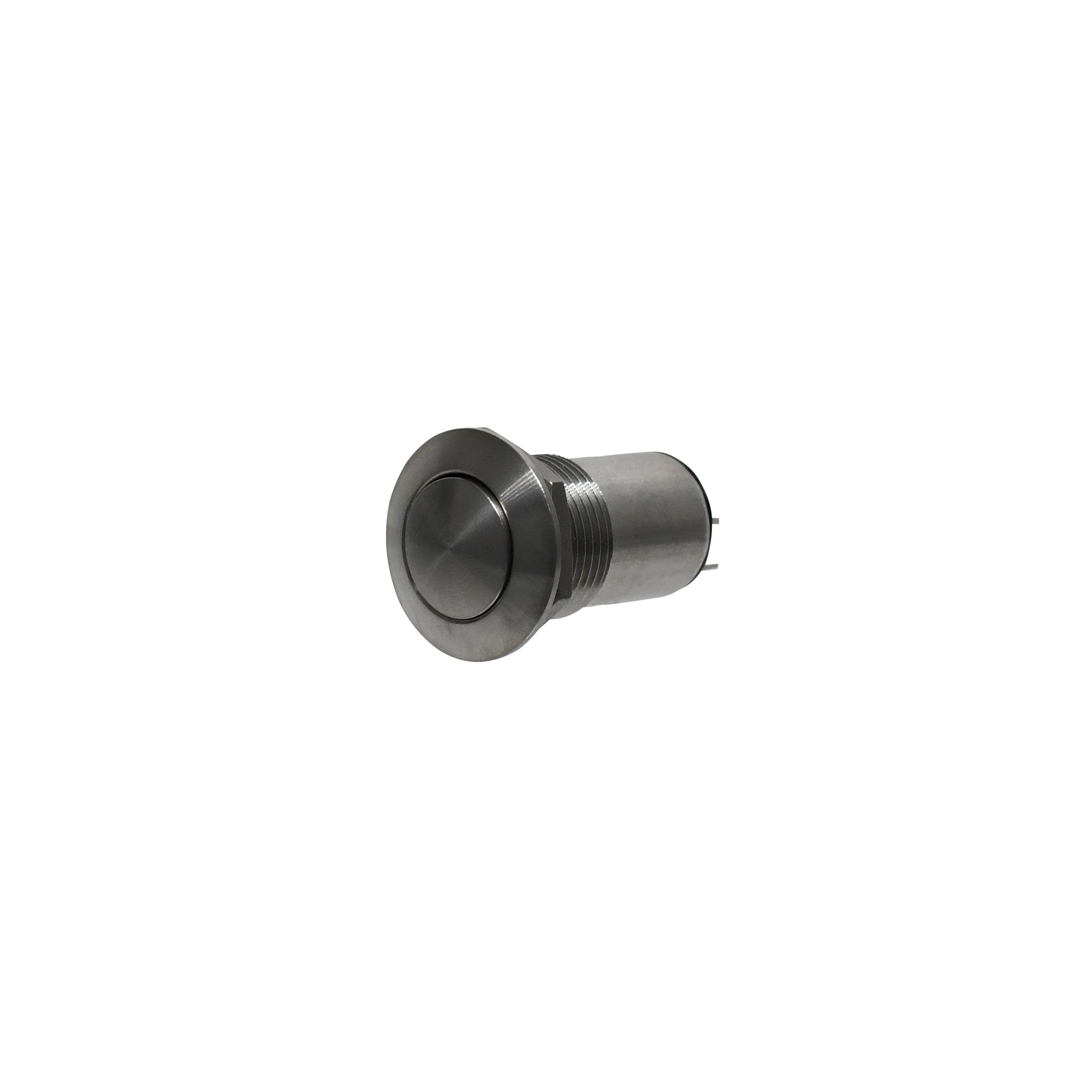

Introducing the P5-V41322, a rugged and reliable Vandal Resistant Pushbutton Switch designed for demanding environments. Featuring a durable stainless steel housing and a sleek silver finish, this button is not only visually appealing but also offers exceptional performance. The IP6K8S rating ensures protection against dust and water ingress, making it ideal for outdoor or industrial use. With a high current rating of 5A and SPDT contact configuration, it provides versatile functionality. The On-On switch function allows for easy control, while the solder termination type ensures secure installation. With a wide operating temperature range from -40°C to 85°C, this switch is built to withstand harsh conditions. Trust the P5-V series for quality and durability in your applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
